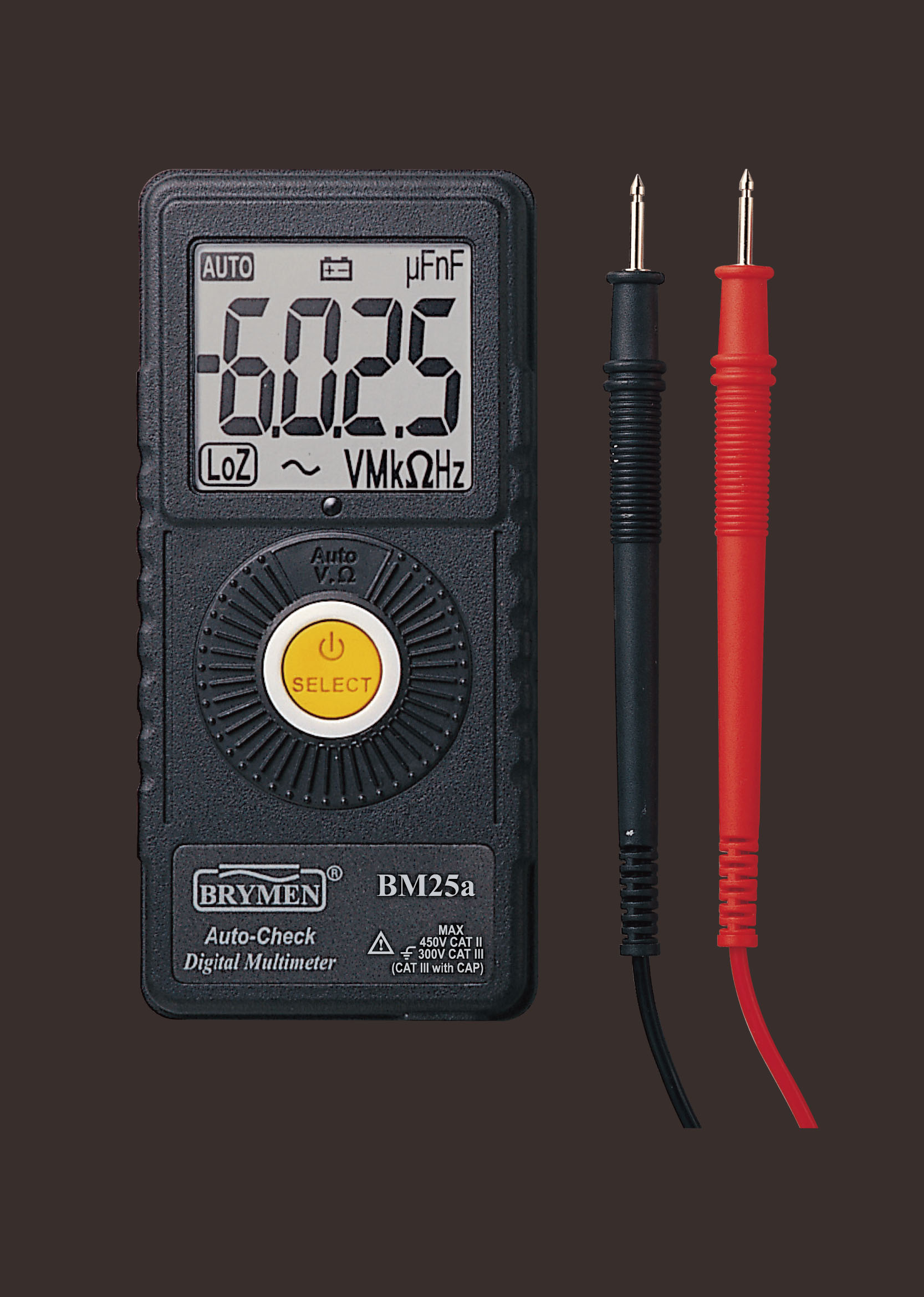

BM25a
AutoCheck DMM

CAT III Card-Sized Meter That Fits Your Pockets

Plus Powerful AutoCheck & EF-Detection Features!
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
ELECTRIC FIELD EF-Detection
(Non-Contact Voltage)
INTELLIGENT Auto Power Off
AUDIBLE CONTINUITY
EMC Meets EN61326-1:2013
TRANSIENT PROTECTION Up To 4kV 1.2/50μs
Lightning Surge
INPUT PROTECTION 450V On All Functions
LVD CAT III 300V & CAT II 450V
HOUSING MATERIAL Fire-Retarded, UL Listed
FREQUENCY 10Hz To 30kHz
(Auto-VΩ Position)
CAPACITANCE 100nF To 100μF,
4 Ranges
AUTOCHECK OHMS 6kΩ To 6MΩ,
4 Ranges
AUTOCHECK Lo-Z DCV & ACV
6V To 450V, 3 Ranges
AUTOCHECK FEATURE (Automatic DCV, ACV
& OHMS Selection )
DATA MEASUREMENT 5/Sec Fast
LARGE EASY TO READ LCD DISPLAY 6,000 Counts
FULLY AUTO-RANGING Yes

Specifications subject to change without notice.
Patented & patents pending.
