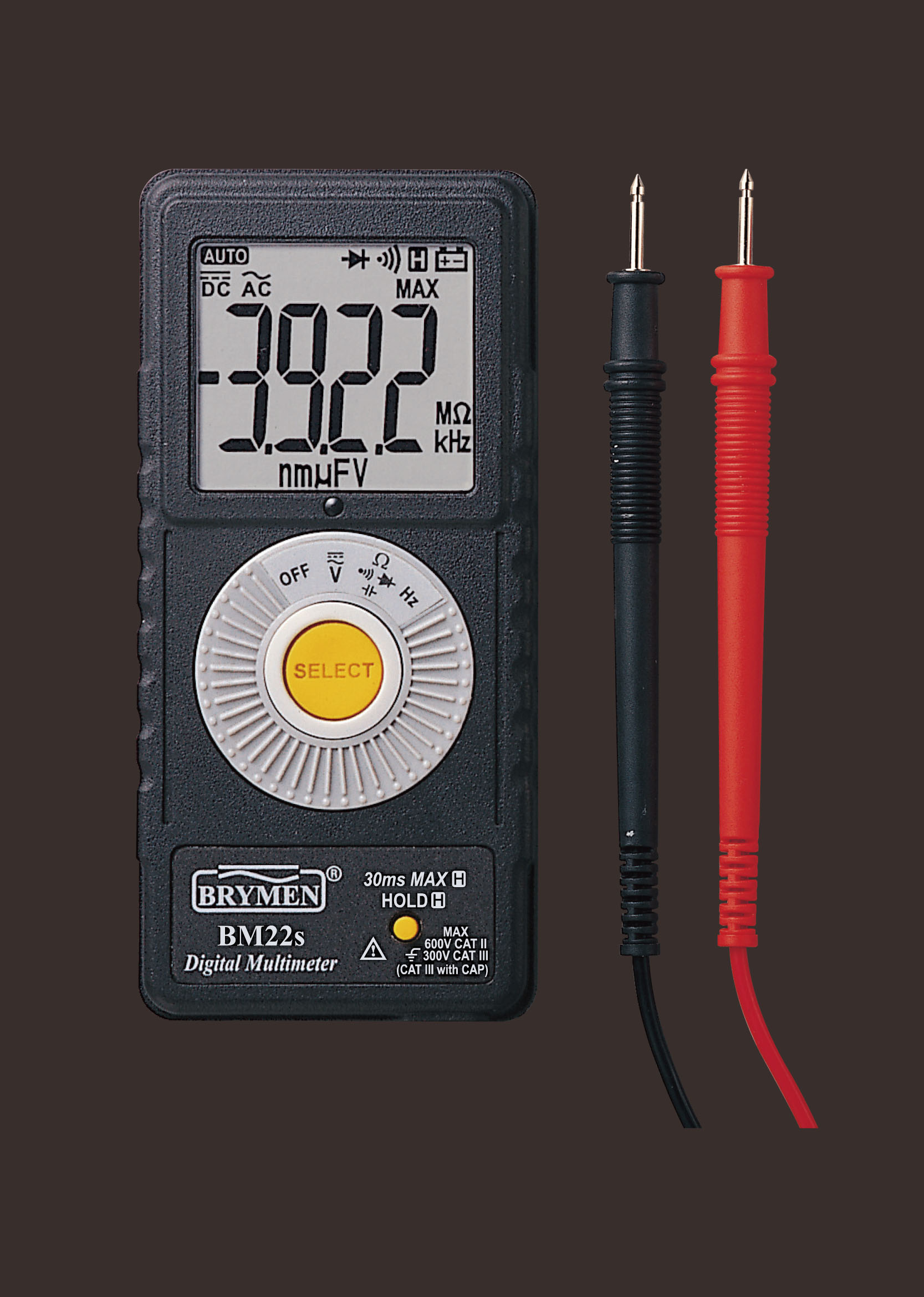

BM22s
AutoCheck DMM

CAT III Card-Sized Meter That Fits Your Pockets
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
STANDARD Auto Power Off
STANDARD Hi-Z DCV & ACV
6V To 600V, 3 Ranges
DIODE TEST Yes
AUDIBLE CONTINUITY Yes
EMC EN61326:2013
TRANSIENT PROTECTION Up To 4kV 1.2/50μs
Lightning Surge
INPUT PROTECTION 600V On All Functions
LVD EN61010-1/-2-030/-2-033
CAT III 300V & CAT II 600V
FUNCTION SELECTOR Yes
HOUSING MATERIAL Fire-Retarded, UL Listed
FREQUENCY 10Hz To 30kHz
(Auto-VΩ Position)
CAPACITANCE 500nF To 3000μF,
5 Ranges
OHMS 400kΩ To 40MΩ,
6 Ranges
DATA MEASUREMENT 5/Sec Fast
LARGE EASY TO READ LCD DISPLAY 6,000 Counts
FULLY AUTO-RANGING Yes

Specifications subject to change without notice.
Patented & patents pending.
