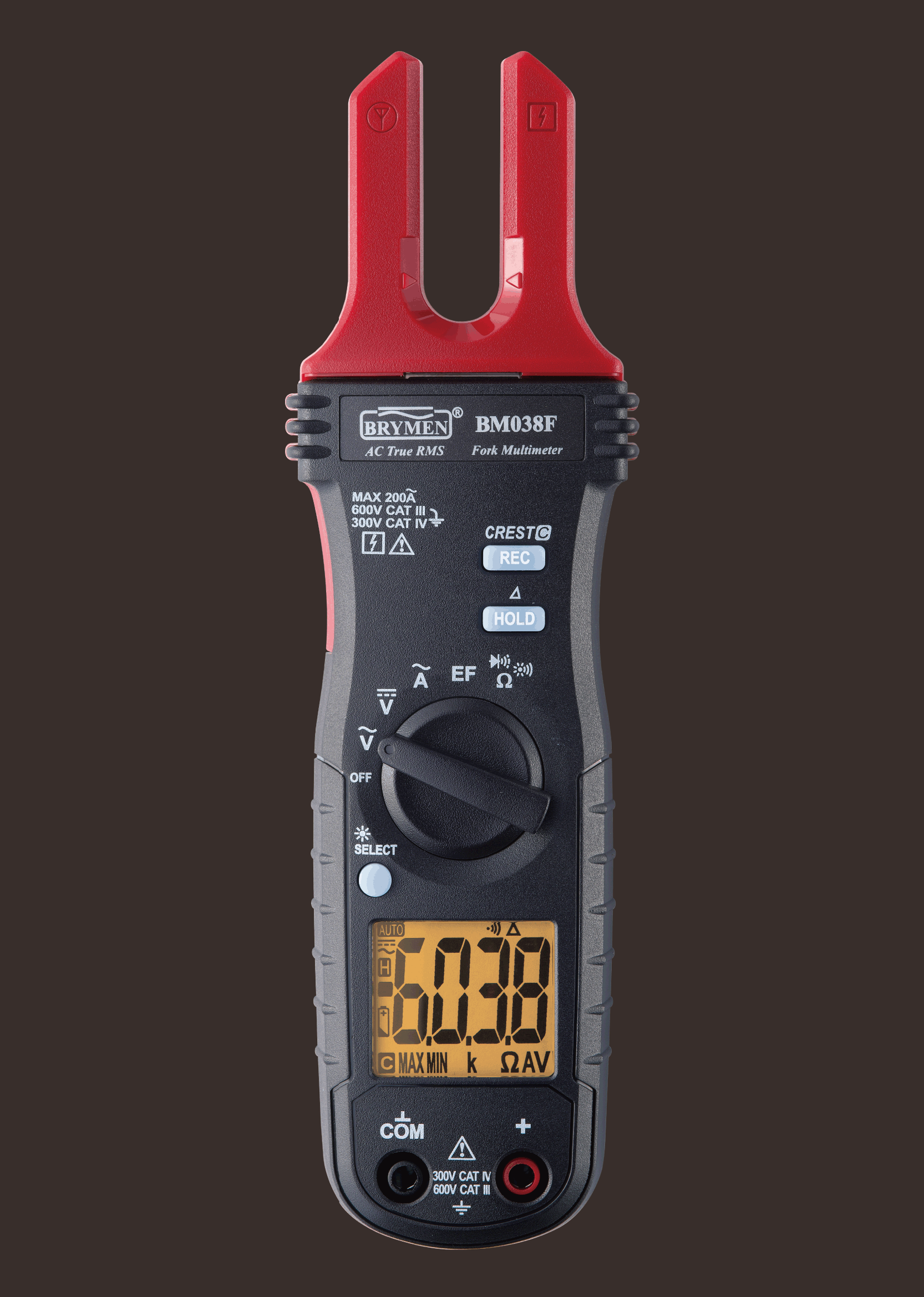

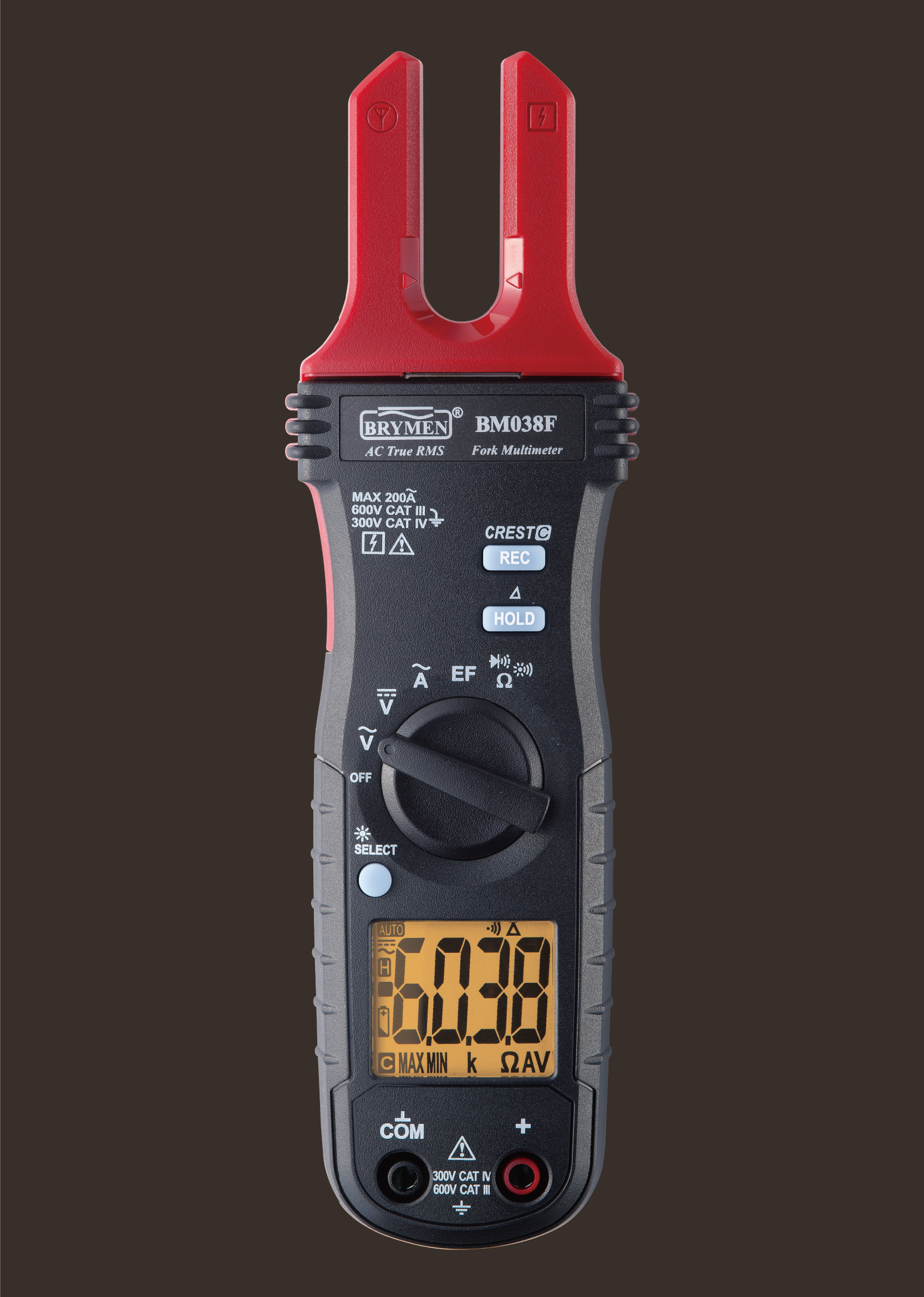

BM038F
Fork-clamp DMM

Compact Fork-clamp! AC-TRMS 200A! Cat-III 600V!

Full Functions! Precise Rotary Switch!

BeepLit™ Continuity & Diode, CREST MaxMin, REC MaxMin, Relative, Hold, Backlight

Fork-clamp ACA, LPF ACV, DCV, MΩ, Hi-Lo EF (NCV)


  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
12mm SLIM-PROBE OPEN JAWS Slide-in to Measure; Easy Access to
Tight Electrical Box Wirings
CREST MaxMin IN-RUSH CURRENTS Fast Captures In-rush +/- Peak
Signals at Durations as Short as
5ms; Automatic APO Disable
Feature
INNOVATIVE BeepLit™ DIODE TEST Short-Beep Alerts on Forward Voltages
<0.85V; Continuous Beep & Backlight
Effects for Shorted Diodes
REC MaxMin DISPLAY READINGS Records Max & Min Readings Over
Time; Automatic APO Disable
Feature
RELATIVE ZERO REL for Convenient Readings
Comparison
DATA HOLD Freezes the Displaying Reading for Later View
INNOVATIVE BeepLit™ CONTINUITY Quick Open-short Tests on Switches and Wires; Beep & Backlight Effects for Noisy Environments
RESISTANCE Best Resolution 0.1Ω At 600Ω Range.
2 Auto-ranges Up To 6kΩ
TRANSIENT PROTECTION Up To 6kV 1.2/50μs Lightning Surge; Fully Certified by Independent Test Lab; Years of Credibility for Serious Users
DUAL SENSITIVITIES EF-DETECTION Features Non-Contact (NCV) & Single-Probe Voltage Detections for Identifying Live Lines; Added User Selectable Hi/Lo Sensitivities
12.5mm ACA FORK-CLAMP Measures AC 200Amps for Conductor
size Up To 12.5mm
LVD CAT III 600V & CAT IV 300V Certified EN61010-2-032, EN61010-2-033, EN61010-1 & Relevant Standards on CAT III 600V & CAT IV 300V
1.0% DCV BASIC ACCURACY Measures Up To 600V DC
DIRECT LPF ACV FOR VFDs Measures Voltage of Most Variable Frequency Drives and Noisy Electrical Signals up to 600V AC
BACKLIGHTED LCD DISPLAY For Easy Viewing in The Dark; 10 mins Auto-Off; Disable Option
FULLY AUTO-RANGING Shortens the Time to Measure and
Increases the Ease of Use
INTELLIGENT AUTO-POWER-OFF (APO) Stays ON While in Measurements;
Intelligently Turns OFF to Extend Battery Life; Disable Option
ERGONOMIC & STREAMLINE BODY Body width <50mm Fits Nicely in One
Hand; Overall Length <200mm For Easy Carrying
TRUE RMS MEASUREMENTS For Non-sinusoidal & Complex
Waveforms of Voltages & Currents
RUGGED & DURABLE Robust Enclosure; Precise & Reliable
Rotary Switch; Premium Plating & Low
Leakage PCB
EMC Superior Immunity to Interferences;
Reliable Operations and Readings; Meets EN61326-1

Specifications subject to change without notice.
Patented & patents pending.
