Products > Electrical Tester Series > BT-75EU

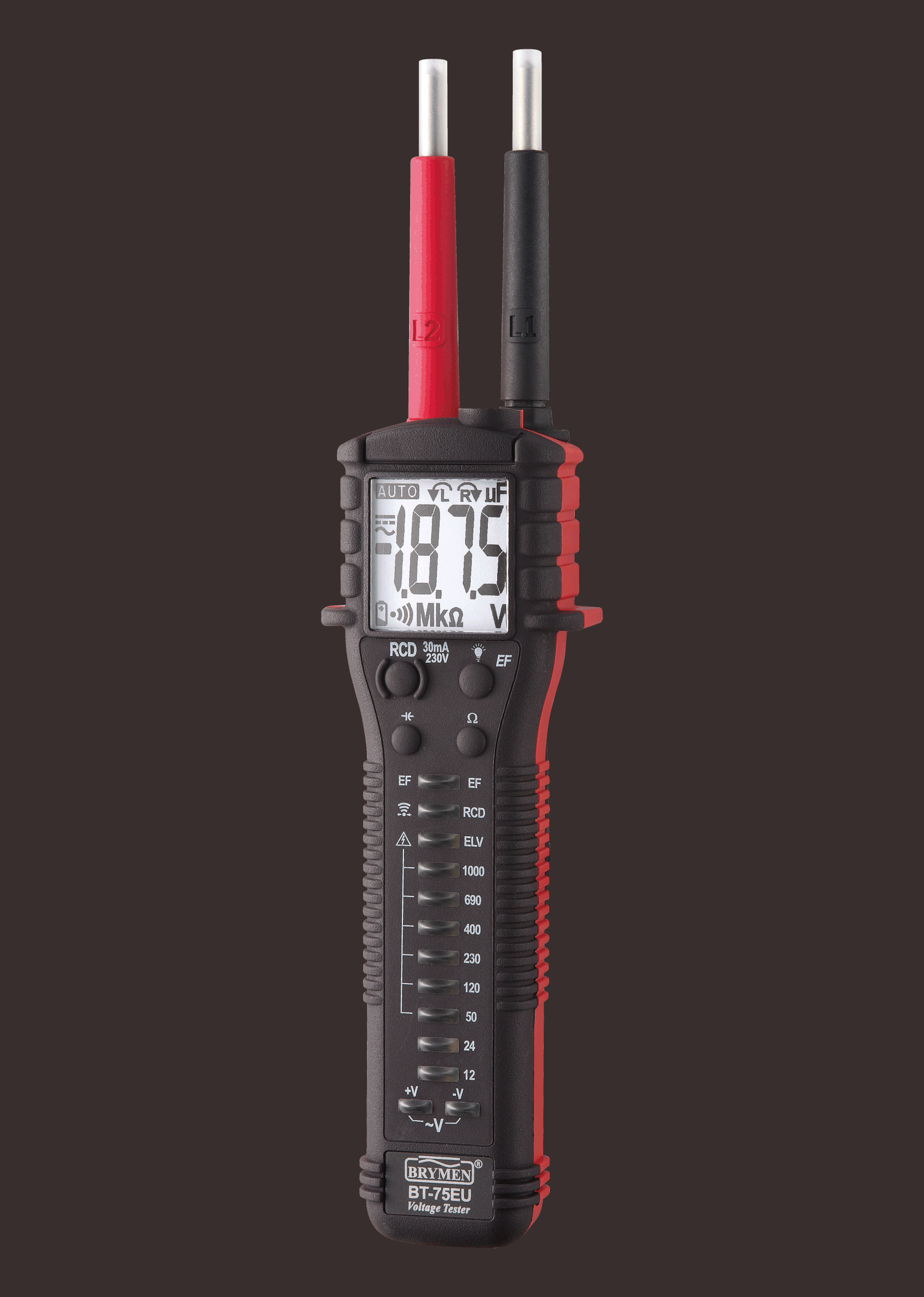

BT-75EU
Electrical Tester

Complementary DCV & True-RMS ACV Numeric LCD Readings!

CAT-III 1kV Rated, EN61243-3:2014 3rd Edition Compliance!

Battery-less Operating Voltages & ELV Limit LED Indications!

User Replaceable IP2x Probes!
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
AC-DETECTION SHAKER The Shaker Signals That Significant ACV Is Being Measured
AUTOMATIC DCV, ACV & CONTINUITY SELECTION Shortens The Time To Test And Increases The Ease Of Use
INTELLIGENT AUTO ON & OFF Automatic Power On & Power Off To Extend Battery Life
SCREW-ON STATIONARY (RED) PROBE BODY Screw-On Design For Easy User Replacement
DETACHABLE(BLACK) TEST LEAD Standard 4mm Plug Design For Easy User Replacement
19mm PROBE PITCH For European Receptacle Testing
IP2X 4mm TIPS DETACHABLE PROBES Spring Retractable Shrouded 4mm TIPS For IEC61010 + IEC61243-3 Ed. 3 Version; Optional 2mm+CAP/4mm For Mere IEC61010
EMC Meets EN61326-1:2013
RST PHASE SEQUENCE INDICATION Convenient Phase Rotation Testing By Using Only Two Poles
BACKLIT LCD & FLASH-LIGHT For More Precise Indication & Easy Viewing In The Dark
RESISTANCE FUNCTION 1.999kΩ, 19.99kΩ, 199.9kΩ & 1000kΩ 4 Ranges
EF-DETECTION Both Non-Contact & Single-Probe Voltage Detection For Identifying Live Lines And Thus The Polarity
ERGONOMIC STREAMLINE DESIGN Fits Comfortably In One's Hand
UP TO 1kV VOLTAGE TESTING Improved Testing Capabilities
DOUBLE INJECTION HOUSING Seamless Over-Molded Push-Button Switches And LED / LCD Display Windows For Harsh Environments
DC AND AC INDICATIONS +V Lights Up For Correct DC Polarity, -V Lights Up For Reversed DC Polarity Both +V & -V Light Up For AC Indication
TRANSIENT PROTECTION Up To 8kV 1.2/50μs Lightning Surge; Superb Protection For Serious Users
LVD CAT III & CAT IV SAFETY Meets EN61010 And EN61243-3 ED. 3, To CAT III 1000V & CAT IV 600V
BATTERY-LESS VOLTAGE DETECTION LEDs Indicate The Presence Of Voltages With Power Supplied By The Test Object, Without The Need Of Battery Power
ELV LIMIT INDICATION (BATTERY-LESS) The LED Indicates The Presence Of A Voltage Beyond The ELV Limit (120 VDC/50 VAC) With Power Supplied By The Test Object, Without The Need Of Battery Power
AUDIBLE CONTINUITY For Quick Open-Short Tests On Switches, Fuses, And Wires
CAPACITANCE FUNCTION 199.9μF & 1999μF 2 Ranges
LEAKAGE LOAD FOR RCD Internal Leakage Load Provided. Typical Leakage Current 30mA At 230V (USA GFCI Version Also Available)

Specifications subject to change without notice.
Patented & patents pending.
