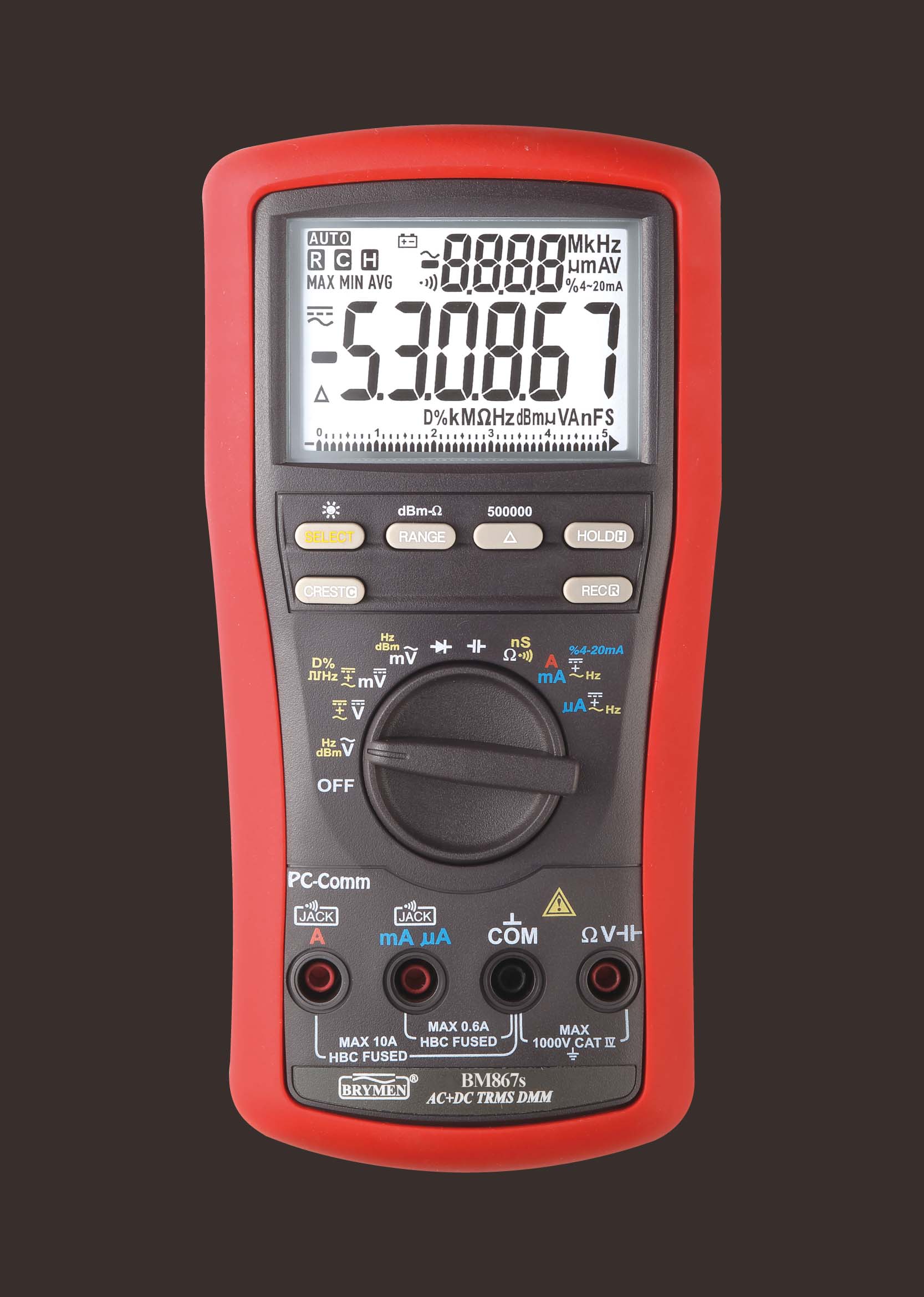

BM867s
Professional Multimeter

500,000 Counts High Performance! Innovative Features! User-Oriented!

5-4/5d DCV At 1μV Best Resolution, DC & AC In Dual Display, DC+AC TRMS, CAT IV 1kV Safety...

USB PC-Comm, Paper-White Backlit, Bar-Graph, BeepJack, Crest (Peak), Rec (Min Max AVG), Relative...

Measures V & Hz, X-Speed Large Cx, nS Conductance, 4-20mA, Line Level Hz, Duty %, dBm...

Ergonomic, Large LCD, Battery Access Cover, Magnetic Hanger, Holster, Probe Holders, Tilt Stand Hanger
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
HIGH ACCURACY 0.03% Basic DCV Accuracy;
1μVDC Best Resolution
ANALOG BAR-GRAPH Fast Update Rate 60/Sec
LARGE 500,000 Counts LCD Display 5/Sec Fast Nominal Update Rate
ASIC TECHNOLOGY More Functions & Features
At Affordable Prices
DUAL DIGITAL DISPLAY Simultaneously View Relevant
Parameters In Complementary Display
DIODE TEST For Checking Diodes
And Rectifiers
DATA HOLD Freezes The Displaying
Reading For Later View
MAX MIN AVG RECORD Record Max, Min & AVG
Readings; Auto-Ranging
nS CONDUCTANCE nS=1/GΩ Virtually Extends
Resistance Measurement To
The Order Of GΩ. It Is Useful
For Leakage Measurements
FAST AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
%4-20mA LOOP CURRENT For Process Control
X-SPEED CAPACITANCE X-Speed Measures Up To 25mF
Only In A Few Seconds; 1kV Protection
CURRENT & Hz Measures Current & Frequencies,
AC & DC In Dual Display
ERGONOMIC STREAMLINE DESIGN Fits Comfortably In One's Hand
TRANSIENT PROTECTION Up To 12kV 1.2/50μs Lightning Surge;
Superb Protection For Serious Users
EMC Meets EN61326-1:2013
LVD SAFETY Meets EN61010-1 ED. 3.0,
EN61010-2-030 ED. 1.0 &
EN61010-2-033 ED. 1.0 To
CAT IV 1kV
PROTECTIVE HOLSTER With Holders For Probe Storage
And "Third Hand" Feature,
Replaceable & Washable
AC, AC+DC TRUE RMS For Non-Sinusoidal Waveforms
Of Complex Voltage Or Current Signals
INTELLIGENT AUTO-POWER-OFF To Extend Battery Life. I-APO Resets On
Significant Operation & Measurements
BEEP-JACK AUDIBLE & VISIBLE WARNING Guards Against Improper Current Terminals
Plug In. Decreases Risks Of Damage
PC INTERFACE CAPABILITY Optional Purchase USB Cable
With Data Recording PC Software
For Win7/8/10
VFD V & Hz FEATURE Measures Fundamental
Voltage & Frequency Of Most
Variable Frequency Drives
dBm FUNCTION With 20 Selectable
Reference Impedance Values
Hz OF LINE LEVEL VOLTAGE Measures Noisy High Voltage
ACV Frequencies Up To 200kHz
In Dual Display
HIGH IMPEDANCE VOLTAGE 1000VAC/DC Measuring Capabilities;
High Input Impedance For
Load Sensitive Circuits
LOGIC LEVEL Hz Measures Digital Logic Level
Frequencies Up To 1MHz
LOGIC LEVEL DUTY% Measures Digital Logic Level
Duty Cycle % Readings
CREST (PEAK HOLD) Captures Instantaneous
+Peak & -Peak, Auto-Ranging
FUNCTION SELECTION Toggle Conveniently Between
Primary & Secondary Functions
PAPER-WHITE DISPLAY BACKLIGHT For Easy Viewing In The Dark
AUTO & MANUAL-RANGING Auto-Ranging With
Manual-Ranging Override

Specifications subject to
change without notice patents pending.
