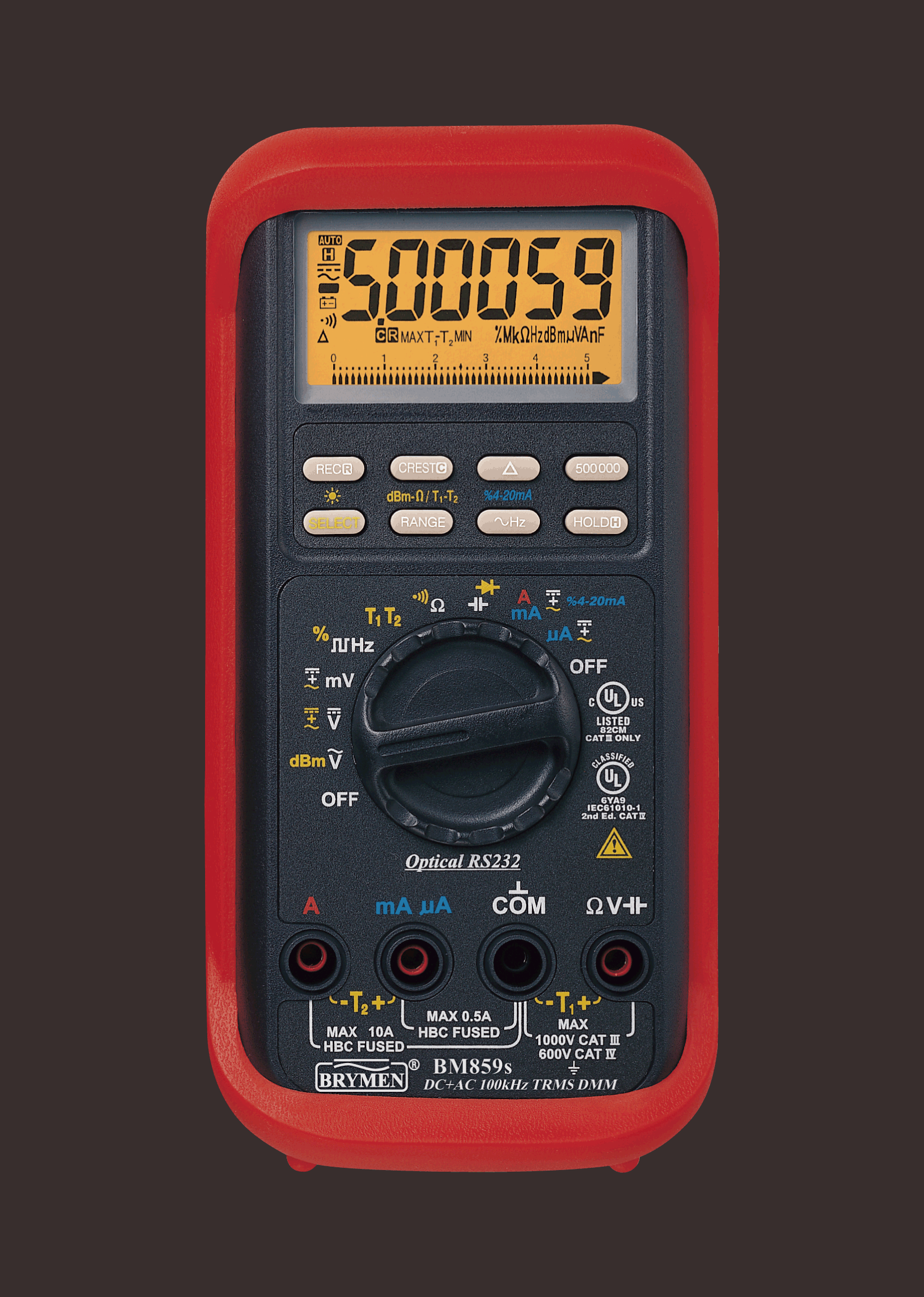

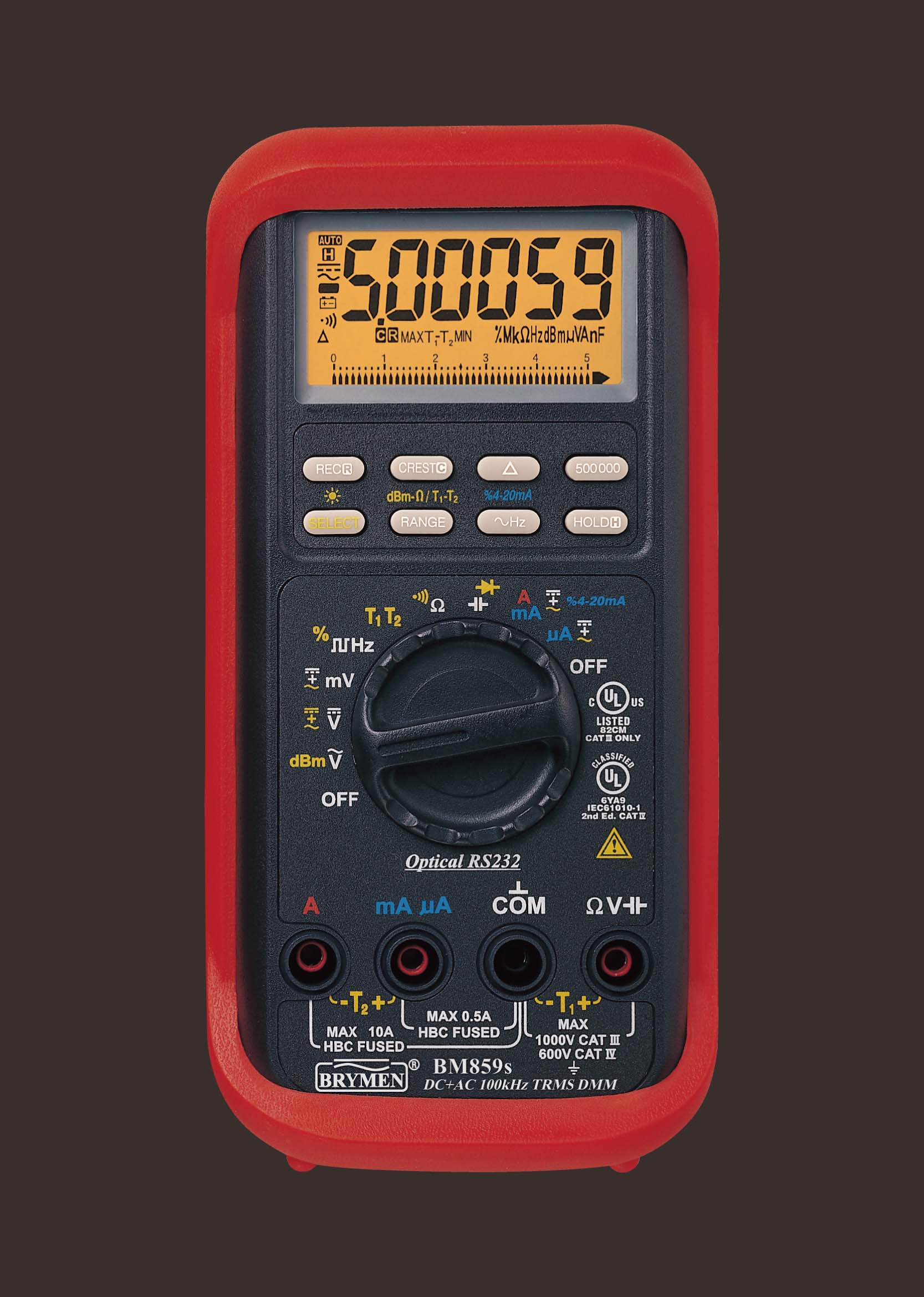

BM859s
Professional DMM

The Return Of Professional Flag-Ship BM850"s" Series

100kHz DC+AC TRMS...500,000 Counts DCV... Yet Only Accept The Best!
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
FULLY AUTORANGING Shortens The Time To Measure
And Increases The Ease Of Use
PC INTERFACE CAPABILITY Optional Purchase RS232C+USB Cables
With Data Recording PC Software
For Win7/8/10
0.02% HIGH BASIC ACCURACY With Large Easy To Read Display
INTELLIGENT AUTO POWER OFF To Extend Battery Life
FAST MEASUREMENTS Data 5 Times / Sec
Bar-Graph 60 Times / Sec
RELATIVE ZERO MODE For Convenient Readings
Comparison & Offset
HIGH RESOLUTION MODE 999,999 Counts In Hz
500,000 Counts In DCV
HIGH VOLTAGE Hz For Noisy Electrical Signals
DATA HOLD Freezes The Displaying
Reading For Later View
%4-20mA LOOP CURRENT For Process Control
DIODE TEST For Testing Diodes And Rectifiers
CAPACITANCE Auto-Ranging Up To 9999μF With
1000V Protection
AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
EMC Meets EN61326:2013
TRANSIENT PROTECTION Up To 8kV 1.2/50μs Lightning Surge,
More Confidence For Serious Users
LVD Meets EN61010-1/-2-030/-2-033
CAT III 1kV & CAT IV 600V
DC+AC TRUE RMS 100kHz Voltage Bandwidth To
Measures Signal True Value
Regardless Of Waveforms
PROTECTIVE HOLSTER Increases Product Durability.
Replaceable & Washable
HBC FUSE PROTECTED High Breaking Capacity
1000V Ceramic Fuse Protected
FIRE RETARDED CASE For Reinforced Safety
INPUT WARNING Audible And Visible Warning
Against Improper Plug In
1kV AC VOLTAGE MEASUREMENT Improved Measuring Capabilities
dBm FUNCTION With 20 Selectable
Impedance Values
DIGITAL SIGNAL Hz For Logic Level Signal
High Frequency Measurements
T1-T2 TEMPERATURE 2 Channels K-Type Temperature,
Selectable °C Or °F Measurements
RANGE Autoranging With Manual-
Ranging Override
LAST SET FUNCTION DEFAULT Last Set Function Will Be Saved As
Power-Up Default For Ease Of Use
BACKLIGHTED LCD DISPLAY For Easy Viewing In The Dark
MAX-MIN RECORD Record Max, Min, Max-Min
Readings, Autoranging
CREST (PEAK HOLD) Captures Instantaneous Peak
Readings As Short As 0.8ms In Duration

Specifications subject to change without notice.
Patented & patents pending.
