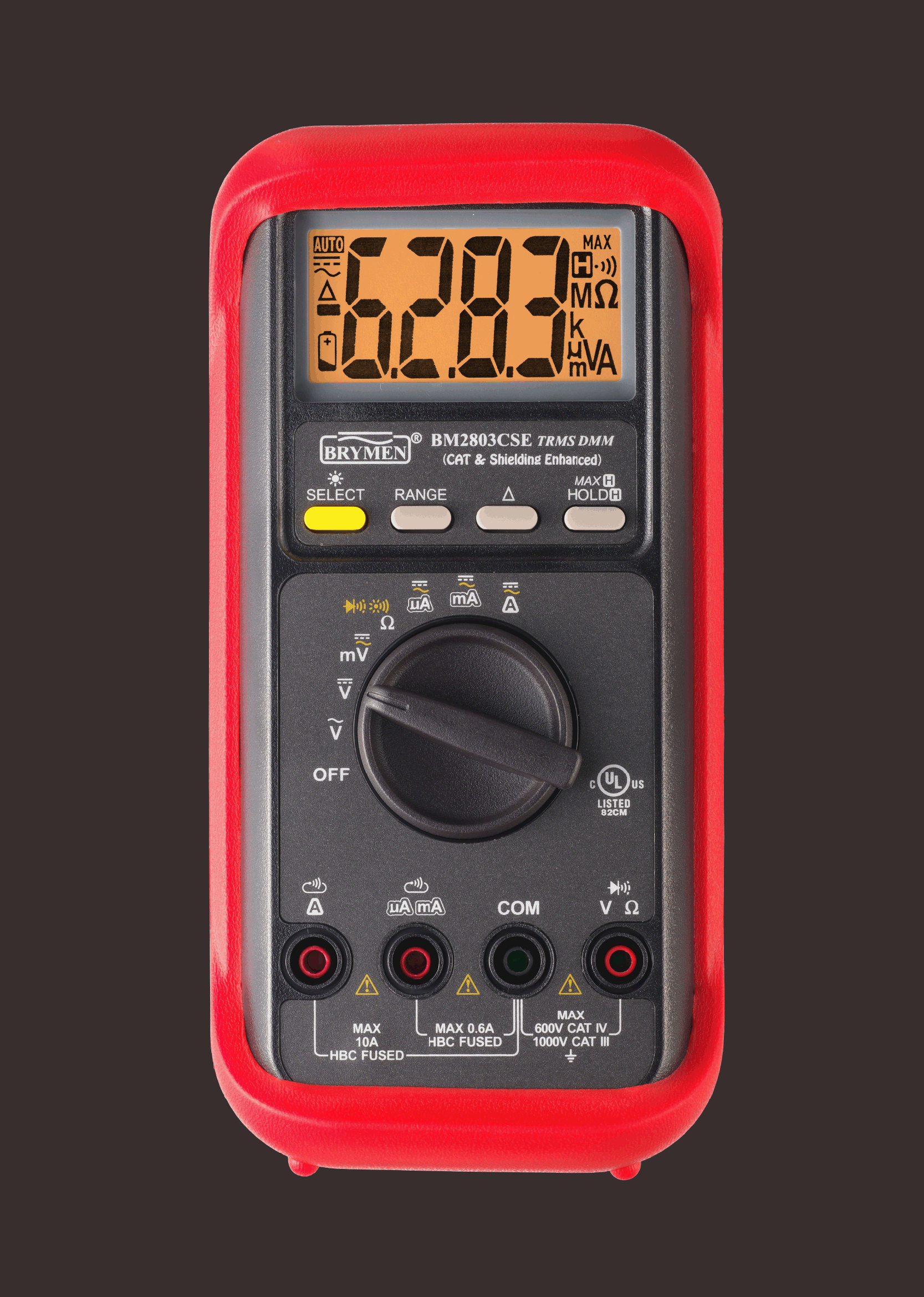

| 26mm Large digit LCD |
3-5/6 Digits 6,000 Counts Nominal |
 |
| Fast Auto-Ranging |
Nominal 5/Sec Fast Measurements |
|
| Relative Zero |
To Offset Measurement Readings |
|
| BeepLit™ Continuity Tester |
Features Audible Beep &
Visible Backlight Effects |
|
| Warm LED Backlight |
LCD Display |
|
| BeepLit™ Diode Tester |
Features BeepPass™ (Short-beep) &
BeepLit™ (Continuity) |
|
| BeepJack™ InEr |
Input Warning Against Improper
Plug into μAmA/A Terminals |
|
| Detachable Protective Holster |
Features Probe-Holders & Tilt-Stand |
|
| HBC 1kV Fuses |
Protected on μAmA & A Terminals |
|
| MAX-hold |
Captures Max Readings as High as
40 Conversions per Second |
|
| Data-hold with Hold-alert™ |
To Warn Against On-hold Readings |
|
| True RMS |
AC Conversions |
|
| iAPO |
Intelligent Auto Power Off |
|
| Fire Retarded Housing |
Rugged with Battery Compartment Door |
|
| Double-sided EMI Shielding |
For Harsh Electromagnetic
Interfering Environments |
|
| EMC Certified |
To EN61326-1 |
|
| DC/AC μA, mA, & A |
Ranges 600.0μA to 10.00A |
|
| Speeded Resistance |
Ranges 600.0Ω to 60.00MΩ |
|
| High Resolution DC/AC mV |
Ranges 60.00mV to 600.0mV |
|
| DC Voltage |
Ranges 6.000V to 1000.0V |
|
| AC Voltage |
Ranges 6.000V to 1000.0V |
|
| 8kV Transient Protection |
Against 1.2/50μs + 8/20μs Combo Surges |
|
| UL Listed & LVD Certified |
To EN61010-2-033 CAT III 1000V & CAT IV 600V |
|
| |
Specifications subject to change without notice.
Patented & patents pending. |
| |
