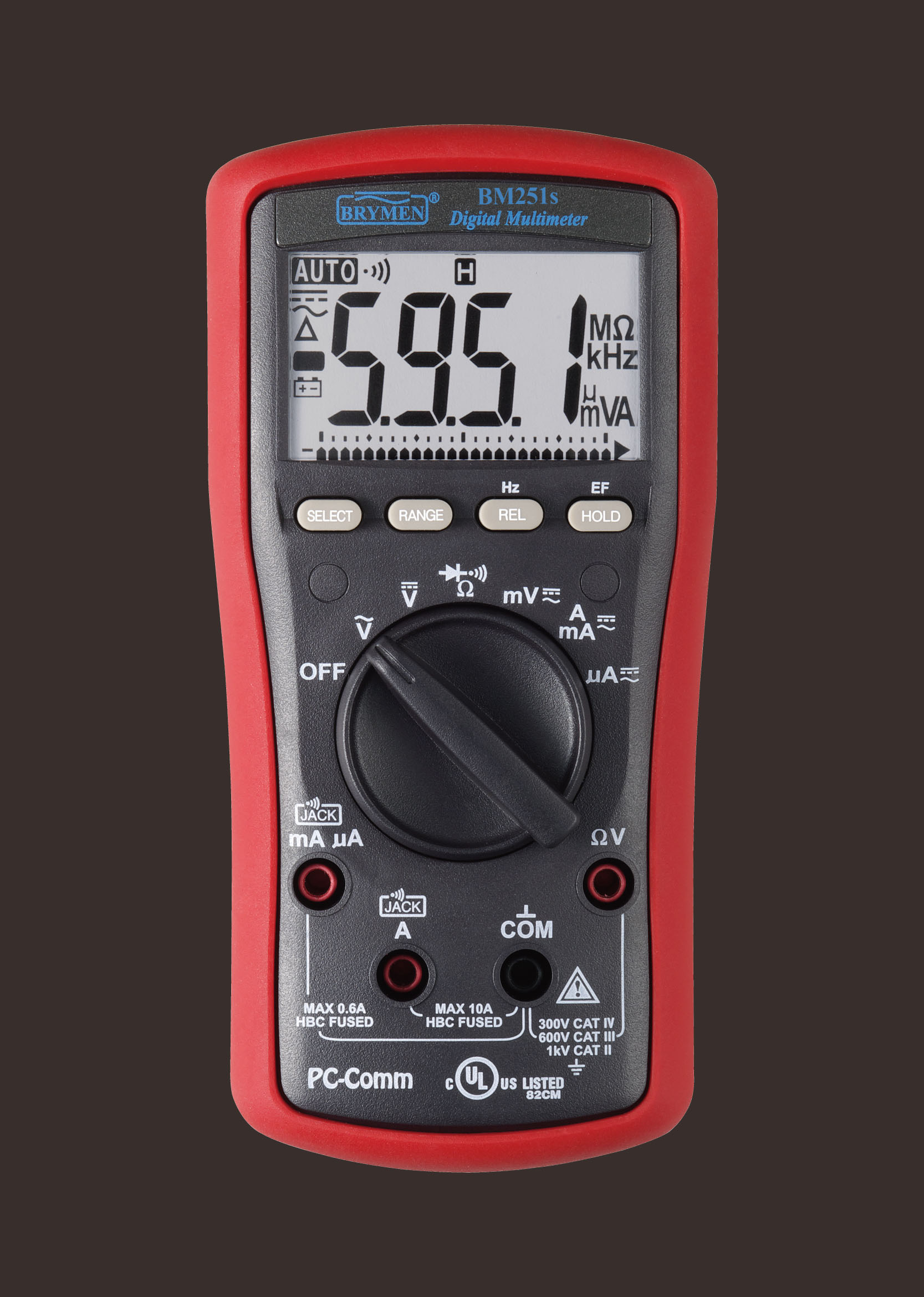

BM251s
Practical Multimeter

Perfect Combination Of Size & Innovative Functions!

Ergonomic, Magnetiv Hanger, Probe Holders, Tilt Stand, Battery & Fuses Access Cover... User-Oriented!

PC-Comm, Bar-Graph, BeepJack, Relativet... Full-Features!

EF-Detection, Line Level Hz... Full-Functions!
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
ASIC TECHNOLOGY More Functions & Features
At Affordable Prices
LARGE 6000 COUNTS LCD DISPLAY 5/Sec Fast Nominal Updata Rate
HIGH ACCURACY 0.2% Basic DCV Accuracy
ANALOG BAR-GRAPH Fast Update Rate 40/Sec
LOGIC LEVEL Hz (mV FUNCTION) Measures Hi Frequency
Logic Signals
LINE LEVEL Hz (V FUNCTION) Measures Noisy High Voltage
ACV Frequencies
EF-DETECTION Both Non-Contact (NCV) &
Single-Probe Voltage Detection
For Identifying Live Lines
DATA HOLD Freezes The Displaying
Reading For Later View
AUTO-POWER-OFF To Extend Battery Life
ERGONOMIC STREAMLINE DESIGN Fits Comfortably In One's Hand
TRANSIENT PROTECTION Up To 6kV 1.2/50μs Lightning Surge;
Superb Protection For Serious Users
EMC Meets EN61326-1:2013
LVD SAFETY Meets EN61010-1/-2-030/-2-033
CAT II 1kV, CAT III 600V & CAT IV 300V
RUGGED & DURABLE High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Durability
PC INTERFACE CAPABILITY Optional Purchase RS232C+USB Cables
With DATA Recording PC Software
For Win7/8/10
PROTECTIVE HOLSTER With Holders For Probe Storage
And "Third Hand" Feature
Replaceble & Washable
BEEP-JACK AUDIBLE WARNING Beeps Against Improper Current Terminals
Plug In. Decreases Risks Of Damage
FAST AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
DIODE TEST For Checking Diodes & Rectifiers
HIGH IMPEDANCE VOLTAGE 1000VAC/DC Measuring Capabilities;
High Input Impedance For
Load Sensitive Circuits
FUNCTION SELECTION Toggle Conveniently Between
Primary & Secondary Functions
AUTO & MANUAL-RANGING Auto-Ranging With
Manual-Ranging Override
HIGH SPEED AUTO-RANGING Shortens The Time To Test
And Increases The Ease Of Use

Specifications subject to
change without notice patents pending.
