| 65ms PEAK-RMS HOLD |
Captures In-Rush RMS Values
Of ACA Or ACV As Short As
65ms In Duration |
 |
| DATA HOLD |
Freezes The Displaying
Reading For Later View |
|
| BATTERY COMPARTMENT |
With Access Door For
Easy Battery Replacement |
|
| PROBE HOLDERS |
Built-In Probe Storage Holders |
|
| THD%-F |
Total Harmonic Distortion-Fundamental
Dual Display Measurements Of
"ACV + THD%-F" Or "ACA + THD%-F" |
|
| kWHr RECORDING |
Records Both 3~ Balanced-Load
& 1~ Kilo-Watt-Hour Readings
With Last Memory Recall |
|
| A-lags-V INDICATION |
Unambiguous Indications Of Current
Lags Voltage In Inductive Circuits |
|
| HIGH CURRENT Hz |
Measures Non-Invasive
ACA Frequency VIA Clamp Jaws |
|
| HIGH VOLTAGE Hz |
Measures Noisy High Voltage
ACV Frequency VIA Test Leads |
|
| 250μs FAST AUDIBLE CONTINUITY |
For Quick Open-Short Tests
On Switches, Fuses, And Wires |
|
| RESISTANCE |
Up To 999.9 OHMS, 0.1 OHM
Resolution With 600V Protection |
|
| TRANSIENT PROTECTION |
Up To 6kV 1.2/50μs Lightning Surge;
More Confidence For Serious Users |
|
| EMC |
Meets EN61326(1997, 1998/A1),
EN61000-4-2(1995, 2000/A2), & EN61000-4-3(2002) |
|
| 3~ UNBALANCED-LOAD POWER W |
Measures Unbalanced-Load Power
Thru Discrete Measurements By Only
One Single Pair Of Jaws For Lower Cost
Of Ownership & Better Portability |
|
| TOTAL POWER FACTOR |
PF = W / VA Is Used For Nowdays
Power-Systems With Harmonics |
|
| FULL POWER PARAMETERS |
Dual Display Measurements Of
"W + PF", "VA + PF", Or "VAR + PF" On
3~ Balanced-Load & 1~ Power |
|
| AutoVA FEATURE |
Sophisticated MCU Controlled
Auto-Selection Of ACA, ACV Or DCV
Shortens The Time To Measure
And Increases The Ease Of Use |
|
| DISPLAY BACKLIGHT |
For Easy Viewing In The Dark |
|
| 0.5% DCV & ACV BASIC ACCURACY |
Up To 600 VOLTS, 0.1V Resolution |
|
| TRUE RMS MEASUREMENTS |
For Non-Sinusoidal Waveforms
Of AC Voltages & AC Currents |
|
| PC-COMM INTERFACE CABABILITIES |
Built-In Optical Isolated Data
Output Port. Optional Purchase
Interface Kit For PC Connection |
|
| LVD CAT III 600V SAFETY |
Meets EN61010-2-032 CAT III 600V |
|
| RUGGED & DURABLE |
High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Reliability |
|

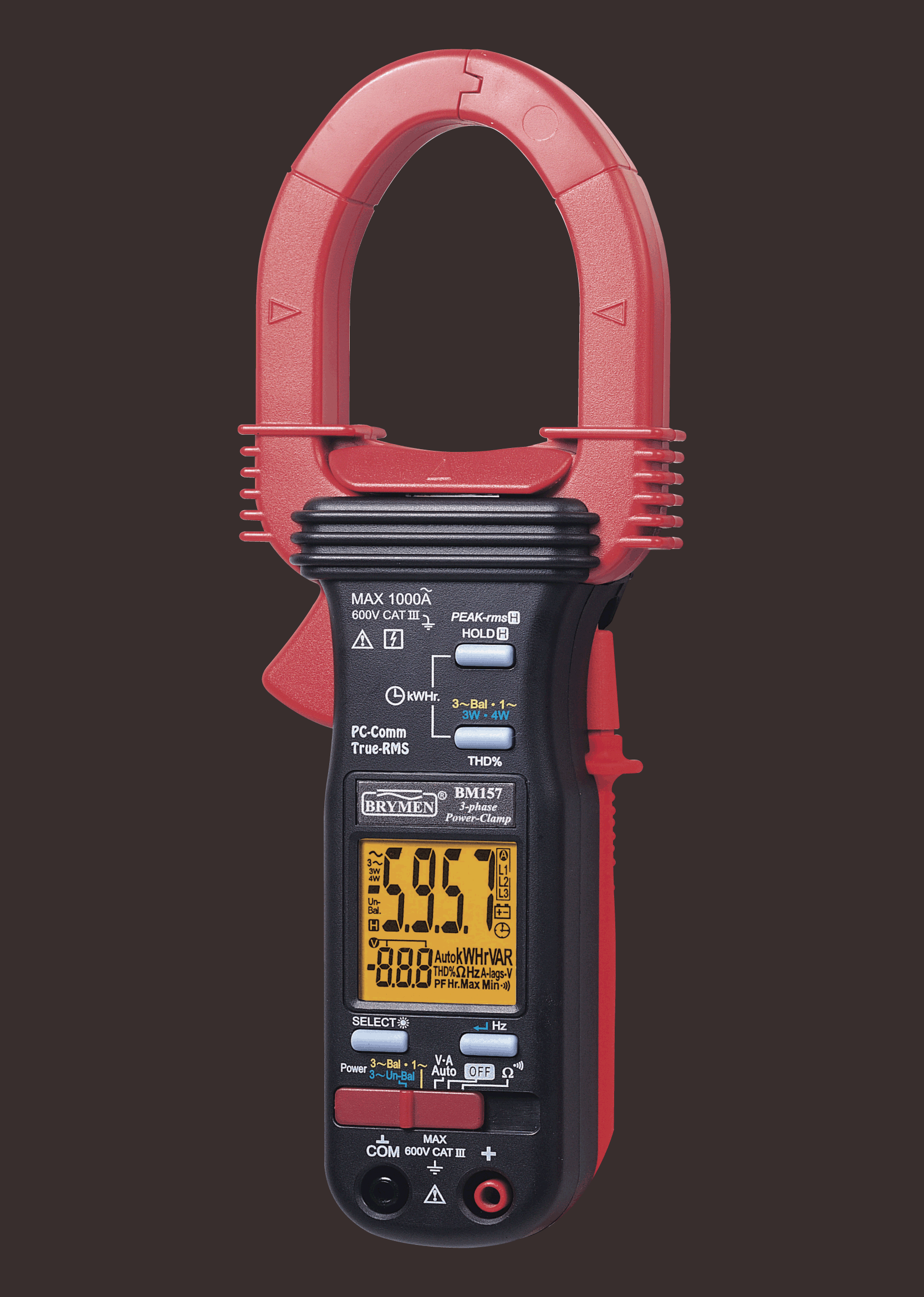

| AC 1000 AMPS LARGE U-SHAPE CLAMP JAWS |
Measure ACA Of Large Single Conductor
Or Differential ACA Of Multiple Conductors |
|
| LIGHT WEIGHT & STYLISH |
Also Comes With A Soft Pouch
For Easy Carrying & Protection |
|
| |
Specifications subject to change without notice.
Patented & patents pending. |
| |
