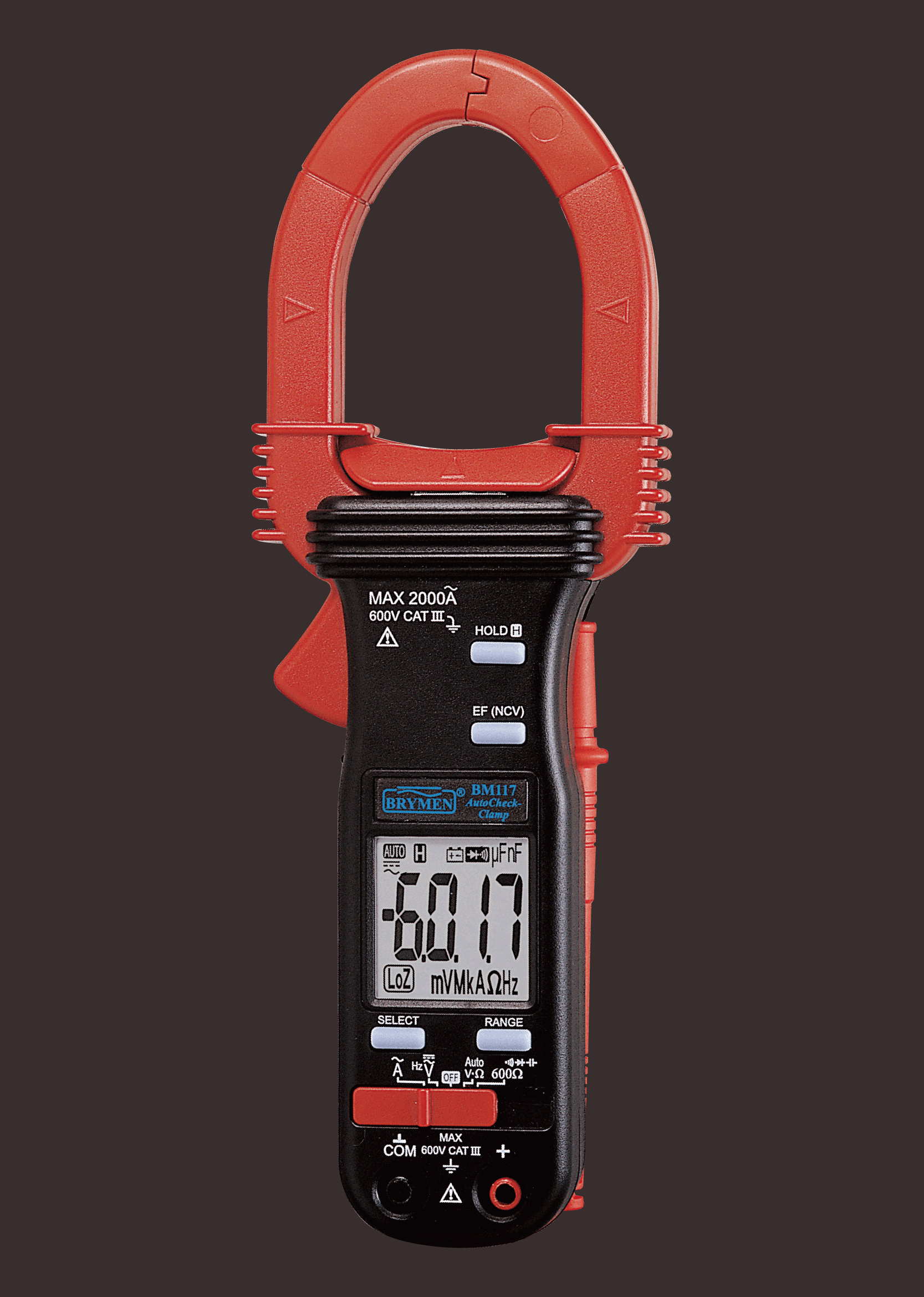

BM117
AutoCheck DMM

A Smart & Versatile Tool For Electricians!

AutoCheck, Ghost-Voltage-Buster & EF-Detection Features!
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
DATA HOLD Freezes The Displaying
Reading For Later Viewing
BATTERY COMPARTMENT With Access Door For
Easy Battery Replacement
PROBE HOLDERS Built-In Probe Storage Holders
ELECTRIC FIELD EF-DETECTION Features Both Non-Contact &
Probe Contact EF-Detection
For Tracing Live Wiring
AUTOCHECK FEATURE Automatic Selection Of
LoZ DCV, LoZ ACV & OHMS
GHOST-VOLTAGE-BUSTER LoZ Drains Ghost/Stray Voltages
Leaving Only Hard Signals
On Meter Readings
AUTOCHECK-RESISTANCE 4 Ranges; Auto-Ranging Up To 6 MΩ
CAPACITANCE 5 Ranges; Auto-Ranging
Up To 2000μF With 600V Protection
DIODE TEST For Testing Diodes And Rectifiers
600 OHMS RANGE WITH AUDIBLE CONTINUITY For Low Resistance & Quick Open-Short
Tests On Switches, Fuses, And Wires
TRANSIENT PROTECTION Up To 6.5kV 1.2/50μs Lightning Surge;
More Confidence For Serious Users
EMC Meets EN61326(1997, 1998/A1),
EN61000-4-2(1995), & EN61000-4-3(1996)
UP TO AC 2000 AMPS MEASUREMENTS 2 Non-Invasive AC Current Auto-Ranges
VIA Clamp Jaws; Best Resolution 0.1A
HIGH VOLTAGE Hz Measures Noisy High Voltage
ACV Frequencies VIA Test Leads
HIGH IMPEDANCE VOLTAGE 600VAC/DC Measuring Capabilities;
High Input Impedance For
Load Sensitive Circuits
0.5% DCV BASIC ACCURACY 3 Ranges; Auto-Ranging
Up To 600 Volts, 0.1V Resolution
LVD CAT III 600V SAFETY Meets EN61010-2-032 CAT III 600V
RUGGED & DURABLE High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Reliability
LARGE U-SHAPE CLAMP JAWS Measure ACA Of Large Single Conductor
Or Differential ACA Of Multiple Conductors
EF ANTENNA Conveniently Located At The Jaw Tip
For Non-Contact EF-Detection (NCV)
STYLISH & HANDY Also Comes With A Soft Pouch
For Easy Carrying & Protection

Specifications subject to change without notice.
Patented & patents pending.
