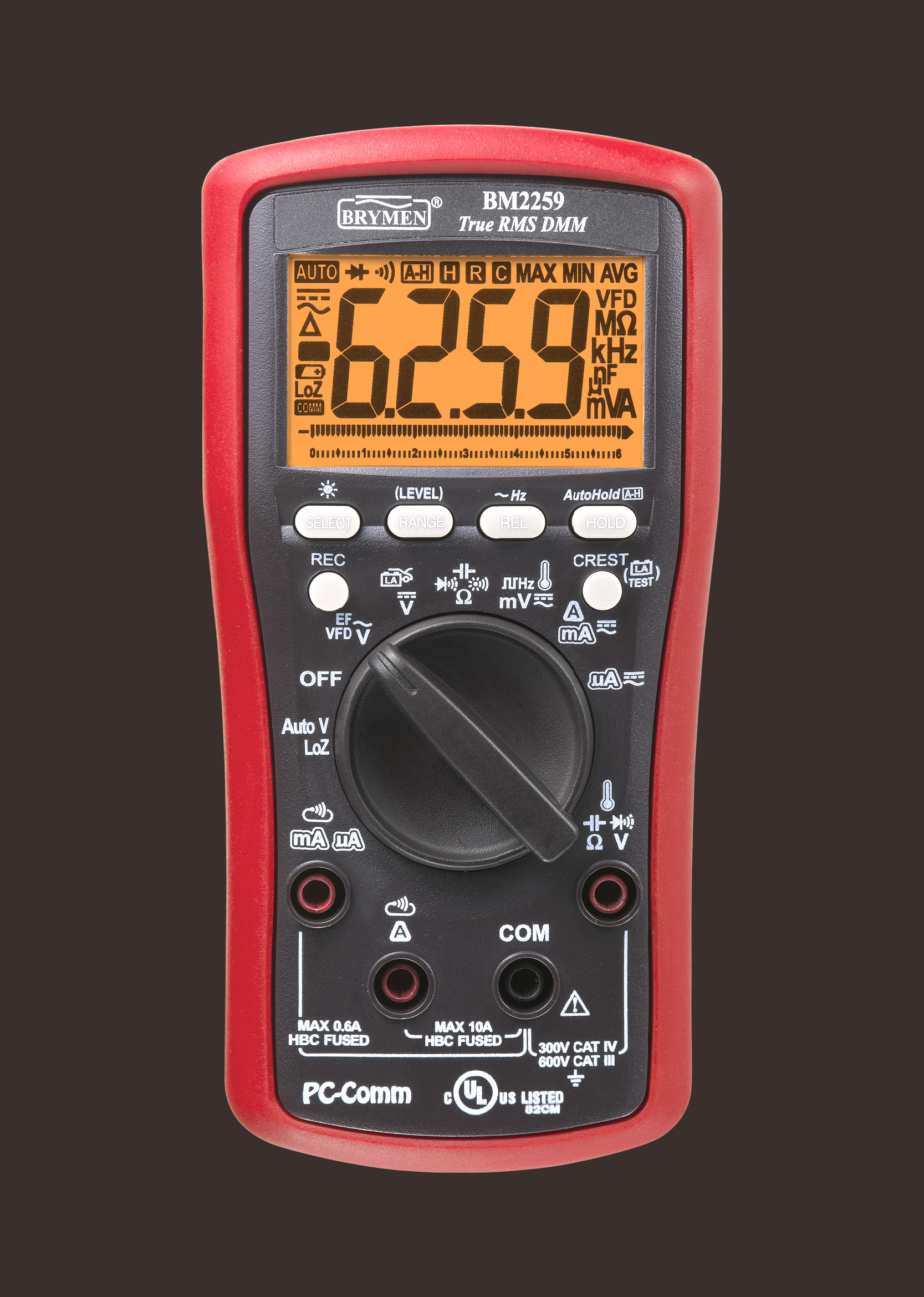

| 3-5/6 Digits LCD Display |
6,000 Counts Nominal;
19mm Height Large Digit |
 |
| Relative Zero Mode |
Convenient Readings
Comparison & Offset |
|
| Capacitance |
Measures Small to Large Motor Capacitors;
7 Ranges @ 20.00nF to 10.00mF |
|
| Fast Measurements |
5/Sec Nominal Data Update;
Fast Auto-Ranging & Measurements |
|
| Lead-acid Battery Cranking-V Test |
≤13.5ms Automated Captures of Engine-cranking
Voltage Drops; Rapid SoC & SoH Indications |
|
| DCV Best Accuracy 0.2% + 3d |
Measures DCV; 3 Ranges @ 6.000V to 600V |
|

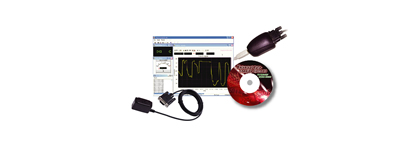

| PC-Comm Interface Capability |
Optional Purchase USB
Cable & PC Software Set |
|
| Fast Analog Bar-graph |
60 Segment High-Resolution
Analog Bar-graph Updates 40/Sec |
|
| REC Max/Min/Avg Auto-ranging |
Records Max, Min, and Calculates
Average Readings Over Time;
Auto-ranging; Automatic iAPO Disable |
|
| Warm Amber Backlight |
Amber LED Warm
Backlight LCD Display |
|
| AutoV |
Automatic Selection of ACV or
DCV Whichever Higher in Magnitude |
|
| LoZ Ghost-voltage-buster AutoV |
Low Ramp-up Input Impedance to
Drain Ghost Voltages Leaving Meter
Readings on Hard Signals |
|
| BeepJack™ Input Warning |
Guards Against Improper Amp Terminals
Plug-in for Voltage Measurements |
|
| VFD_ACV with LPF |
For Noisy Electrical and
VFD Signals; Range @ 600.0V |
|
| Detachable Protective Holster |
Features Probe-Holders & Tilt-Stand;
Washable & Replaceable |
|
| Auto Power Off (iAPO) |
Stays ON While in Measurements;
Intelligently Turns OFF to Extend Battery Life;
Power-up Disable option |
|
| HBC Fuses Protected |
High Breaking Capacity Fuses
Protected on µAmA & A Terminals |
|
| EF-Detection with Hi/Lo Sensitivities |
Features Non-Contact (NCV) &
Single-Pole Contact Voltage Detections;
Selectable Hi/Lo Sensitivities |
|
| ACV |
Measures ACV;
3 Ranges @ 6.000V to 600V |
|
| EMC Certified |
Superior Immunity to Interferences;
Reliable Operations and Readings;
EN61326-1 Certified |
|
| AC True RMS |
Ideal for Non-sinusoidal & Complex Waveforms
on Voltage and Current Functions |
|
| AC Line-level Hz |
Measures Noisy High Voltage Frequency
via Test leads; 10Hz to 50kHz |
|
| Logic Level Hz |
Measures Digital Logic Level Frequencies
from 10.00Hz to 200.0kHz |
|
| High-Resolution AC/DC mV |
2 Ranges @ 60.00mV to 600.0mV |
|
| Type-K Temperature |
Measures from -40.0 °C to 1000 °C or -40.0 °F
to 1832 °F; °C/°F Selectable |
|
| AutoHold with Real-Read™ |
Shows Real-time Readings and Automatically
Latches the Last Stable Reading for Later Viewing |
|
| Display HOLD |
Freezes the Displaying
Reading for Later Viewing |
|
| CREST Max/Min >5ms Peaks |
Fast Captures +/- Peak Extremes at
Durations > 5ms; Automatic iAPO Disable |
|
| Rugged & Durable |
Robust Enclosure, Premium Plated Low
Leakage PCB, and Reliable Rotary Switch |
|
| AC/DC μA, mA, & A |
6 Ranges @ 600.0μA to 10.00A |
|
| Fast BeepLit™ Continuity |
Fast Captures +/- Peak Extremes at
Durations > 5ms; Automatic iAPO Disable |
|
| 600V General Input Protection |
Superb Protection for Misinput on All
Functions and Ranges |
|
| Transient Protection to 6kV |
1.2/50μs + 8/20μs Combo Surges;
Fully Certified by Independent Test Lab;
Years of Credibility for Serious Users |
|
| Resistance |
6 Ranges @ 600.0Ω To 60.00MΩ |
|
| LVD with ᶜULᵘˢ |
Listed to CAT III 600V; UL, CSA, CE,
and UKCA Compliance |
|
| Diode with BeepLit™ & BeepPass™ |
Continuous Beep + Backlight
Effects on Shorted Diodes;
Short-Beep Alerts on Good Diodes |
|
| Battery Access Door |
Fire-retarded Housing with
Battery Access Door |
|
| |
Specifications subject to change without notice.
Patented & patents pending. |
| |
