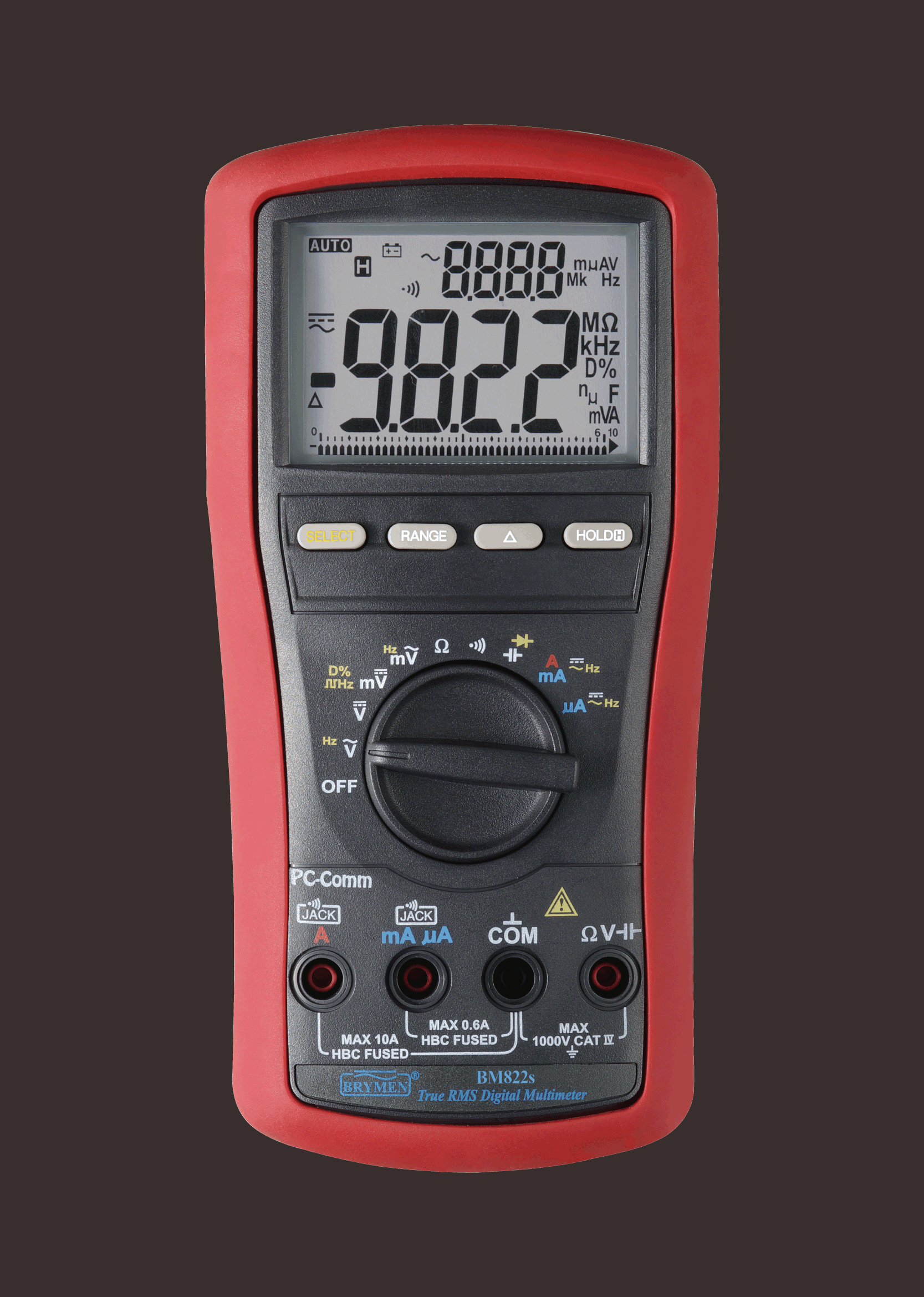

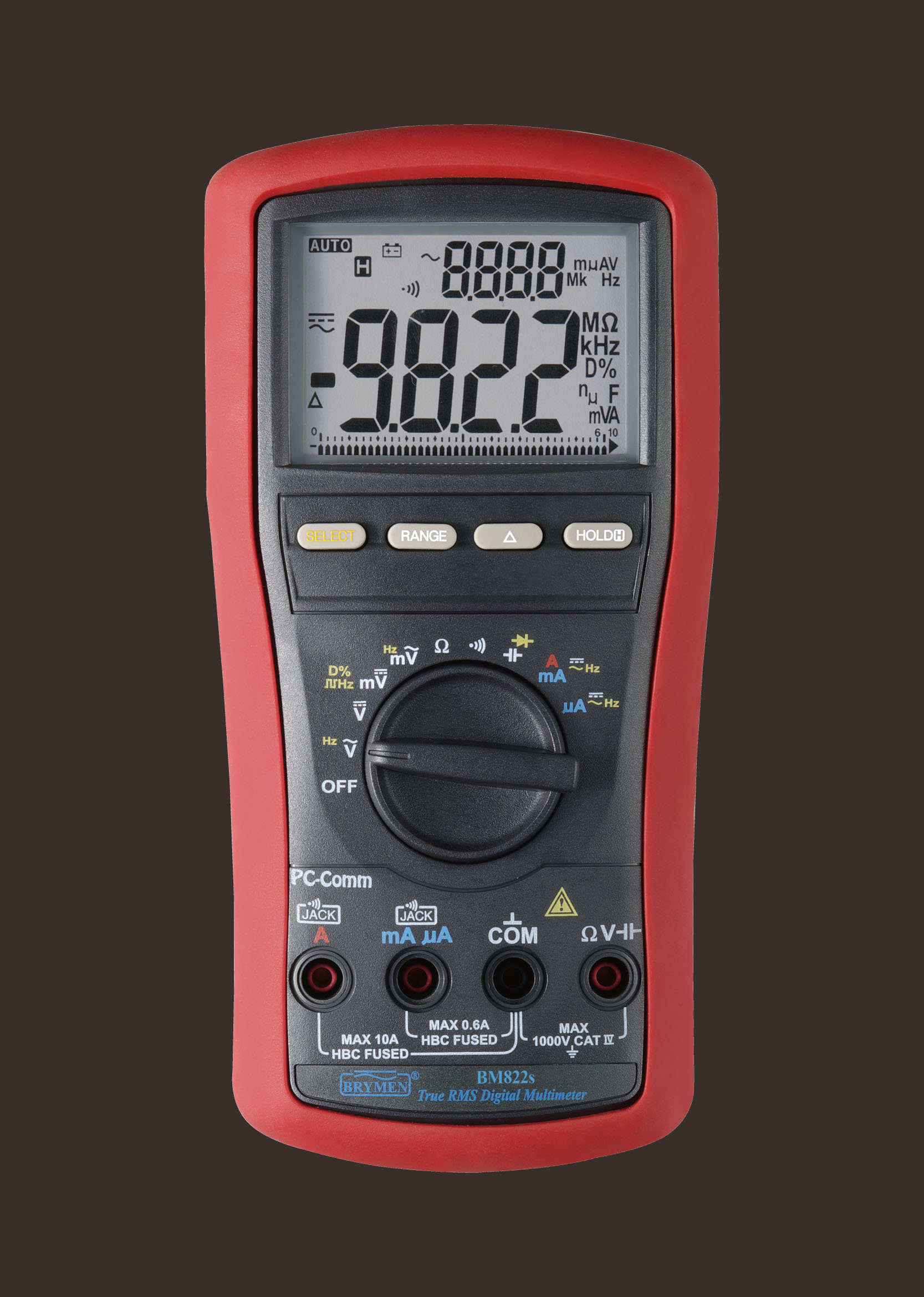

BM822s
Professional Multimeter

Choice Of Dual Display Performance & CAT IV 1kV Safety!

12kV Transient Protection, AC True RMS, Duty %, 4 Digit Resolution... And More!

Ergonomic, Magnetic Hanger, Probe Holders, Tilt Stand & Hanger, Battery Access Cover... User-Oriented!

PC-Comm, Bar-graph, BeepJack, Relative... Full-Features!

Capacitance, Line Level Hz... Full-Functions
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
HIGH ACCURACY 0.08% Basic DCV Accuracy;
Fast Auto-Ranging
ANALOG BAR-GRAPH Fast Update Rate 60/Sec
LARGE 10000 COUNTS LCD DISPLAY 5/Sec Fast Nominal Update Rate
ASIC TECHNOLOGY More Functions & Features
At Affordable Prices
DUAL DIGITAL DISPLAY Simultaneously View Relevant
Parameters In Complementary Display
FAST AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
DATA HOLD Freezes The Displaying
Reading For Later View
DIODE TEST For Checking Diodes
And Rectifiers
CAPACITANCE Up To 25mF With 1000V Protection;
Auto-Ranging
CURRENT & Hz Measures Current & Frequencies
In Dual Display
ERGONOMIC STREAMLINE DESIGN Fits Comfortably In One's Hand
INTELLIGENT AUTO-POWER-OFF To Extend Battery Life
TRANSIENT PROTECTION Up To 12kV 1.2/50μs Lightning Surge;
Superb Protection For Serious Users
EMC Meets EN61326-1:2013
LVD SAFETY Meets EN61010-1 ED. 3.0,
EN61010-2-030 ED. 1.0 &
EN61010-2-033 ED. 1.0 To
CAT IV 1kV
PROTECTIVE HOLSTER With Holders For Probe Storage
And "Third Hand" Feature,
Replaceable & Washable
AC TRUE RMS MEASUREMENTS For Non-Sinusoidal Waveforms
Of Complex Voltage Or Current Signals
BEEP-JACK AUDIBLE & VISIBLE WARNING Guards Against Improper Current Terminals
Plug In. Decreases Risks Of Damage
PC INTERFACE CAPABILITY Optional Purchase USB Cable
With Data Recording PC Software
For Win7/8/10
Hz OF LINE LEVEL VOLTAGE Measures Noisy High Voltage
ACV Frequencies In Dual Display
HIGH IMPEDANCE VOLTAGE 1000VAC/DC Measuring Capabilities;
High Input Impedance For
Load Sensitive Circuits
LOGIC LEVEL Hz Measures Digital Logic Level
Frequencies Up To 1MHz
LOGIC LEVEL DUTY% Measures Digital Logic Level
Duty Cycle % Readings
FUNCTION SELECTION Toggle Conveniently Between
Primary & Secondary Functions
AUTO & MANUAL-RANGING Auto-Ranging With
Manual-Ranging Override

Specifications subject to change without notice.
Patented & patents pending.
