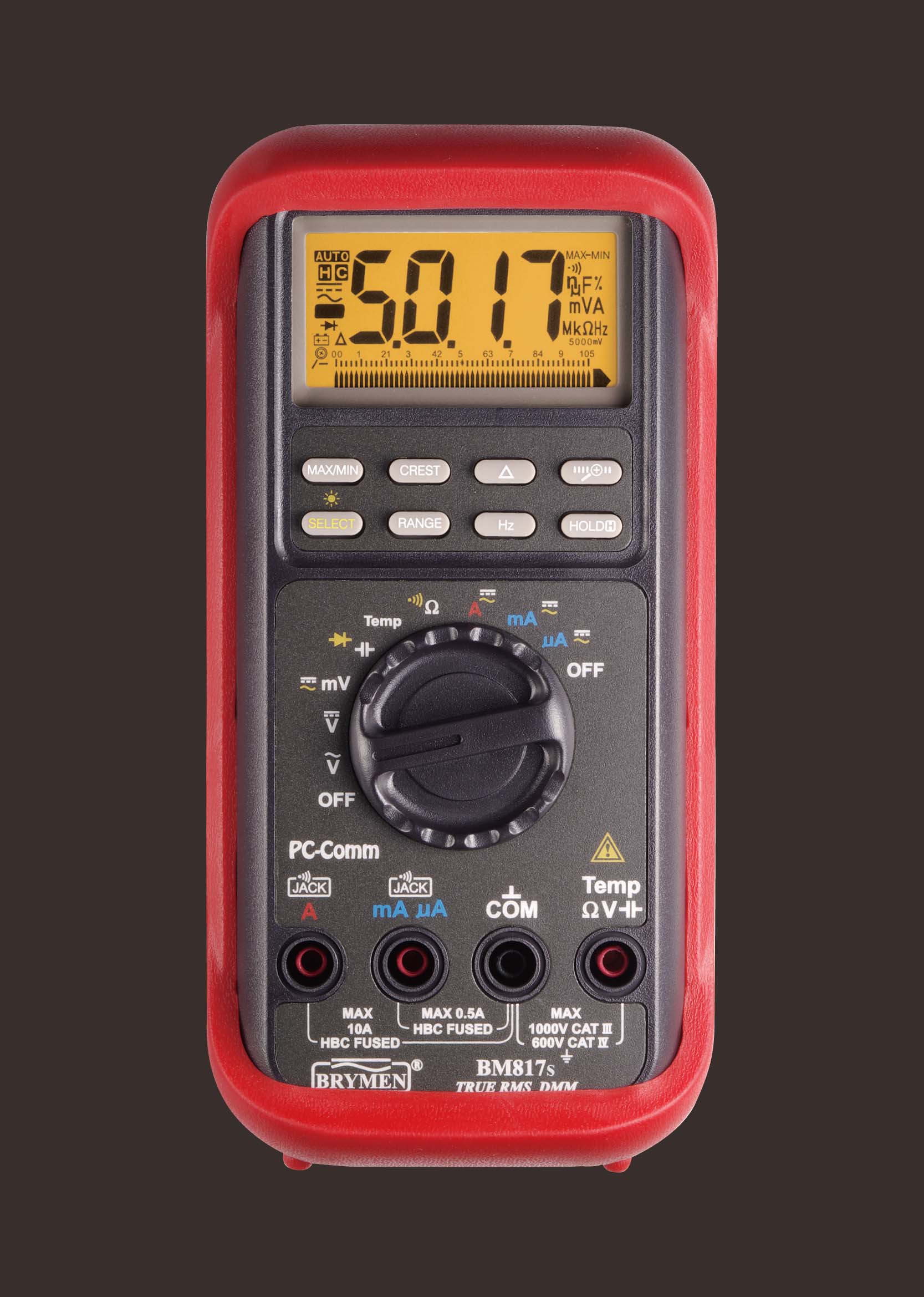

BM817s
Professional DMM

The Return Of The Popular High Performance BM810"s" Series

High Speed, High Accuracy, High Dollar-Value + BeepJack High Safety
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
FULLY AUTO-RANGING Shortens The Time To Test
And Increases The Ease Of Use
TRUE RMS Measures True Value
Regardless Of Waveforms
PC INTERFACE CAPABILITY Optional Purchase RS232C+USB Cables
With Data Recording PC Software
For Win7/8/10
0.08% HIGH BASIC ACCURACY With Large Easy To Read Display
AUTO POWER OFF (APO) To Extend Battery Life
FAST MEASUREMENTS Data Updates 5 Times / Sec
RELATIVE ZERO MODE For Convenient Readings
Comparison & Offset
ZOOM ANALOG POINTER 5 Times The Resolution To
Detect Small Signal Trends,
Updates 60 Times Per Second
Hz FUNCTION Frequency Measurement
DATA HOLD Freezes The Displaying
Reading For Later View
PLUS 50Ω LOW OHM RANGE Up To 0.01mΩ Resolution,
Auto Test Leads Calibration
K-TYPE TEMPERATURE Selectable °C Or °F
Measurements
CAPACITANCE Autoranging Up To 9999μF With
1000V Protection
EMC Meets EN61326-1:2013
TRANSIENT PROTECTION Up To 8kV 1.2/50μs Lightning Surge,
More Confidence For Serious Users
LVD Meets EN61010-1/-2-030/-2-033
CAT III 1kV & CAT IV 600V
PROTECTIVE HOLSTER Increases Product Durability
FIRE RETARDED CASE For Reinforced Safety
BEEP-JACK AUDIBLE & VISIBLE WARNING

Guards Against Improper Current Terminals
Plug In. Decreases Risks Of Damage
HBC FUSE PROTECTED High Breaking Capacity 1000V
Ceramic Fuse Protected
1kV AC VOLTAGE MEASUREMENT Improved Measuring Capabilities
PLUS 50mV LOW VOLTAGE RANGE Up To 0.01mV Resolution
DIODE TEST For Checking Diodes And Rectifiers
AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
RANGE Autoranging With Manual-
Ranging Override
FUNCTION SELECTION Conveniently Toggle Between
Primary & Secondary Functions
BACKLIGHTED LCD DISPLAY For Easy Viewing In The Dark
MAX-MIN RECORD Record Max, Min, Max-Min
Readings, Autoranging
Data Updates 20/Sec
CREST (PEAK HOLD) Captures Instantaneous Peak
Readings As Short As 5ms In Duration

Specifications subject to change without notice.
Patented & patents pending.
