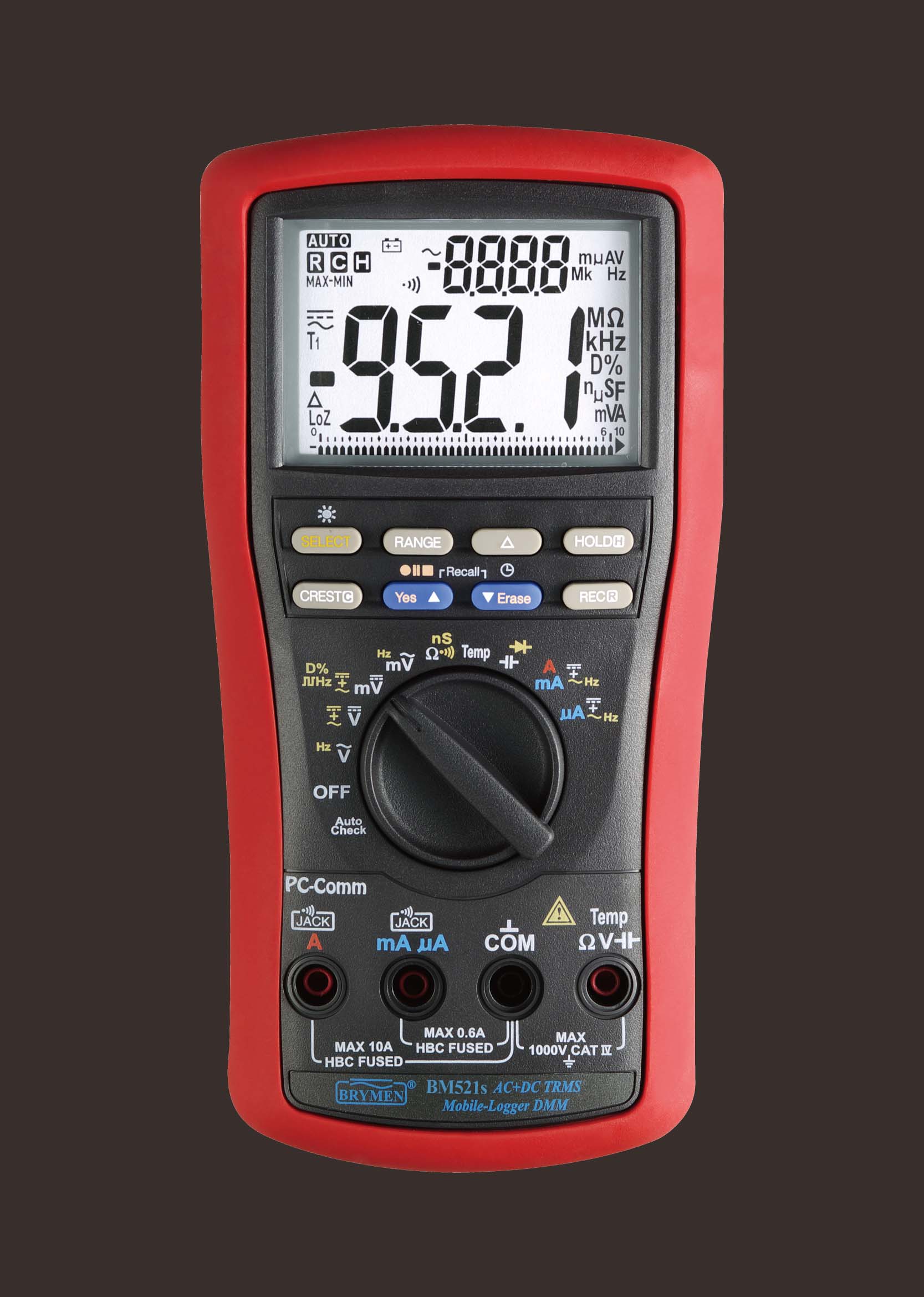

BM521s
Professional Multimeter

Mobile Logger Supports Multi-session, More Memory & Dual Display!

12kV Transient Protection, 1kV Fuses, DC+AC True RMS, Duty %, 4 Digit Resolution, nS Conductance... And More!

Data-Logging, PC-Comm, Bar-graph, BeepJack, Crest (Peak), Rec (Min Max), Relative, Backlit... Full-Features!

Ergonomic, Magnetic Hanger, Probe Holders, Tilt Stand & Hanger, Battery Access Cover... User-Oriented!

AutoCheck+LoZ, Capacitance, Line Level Hz, T1 Temperature... Full-Functions
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
DUAL DIGITAL DISPLAY Simultaneously View
Relevant Parameters In
Complementary Display
LARGE 10000 Counts LCD Display 5/Sec Fast Nominal Update Rate
DATA HOLD Freezes The Displaying
Reading For Later View
MAX MIN RECORD Record Max And Min
Readings; Auto-Ranging
DIODE TEST For Checking Diodes
And Rectifiers
T1 TYPE-K TEMPERATURE Selectable °C & °F Readings
CAPACITANCE Up To 25mF With 1000V Protection;
Auto-Ranging
CURRENT & Hz Measures Current & Frequencies,
In Dual Display
ERGONOMIC STREAMLINE DESIGN Fits Comfortably In One's Hand
INTELLIGENT AUTO-POWER-OFF To Extend Battery Life
TRANSIENT PROTECTION Up To 12kV 1.2/50μs Lightning Surge;
Superb Protection For Serious Users
EMC Meets EN61326-1:2013
LVD SAFETY Meets EN61010-1/-2-030/-2-033
CAT IV 1kV
PROTECTIVE HOLSTER With Holders For Probe Storage
And "Third Hand" Feature,
Replaceable & Washable
AC, AC+DC TRUE RMS MEASUREMENTS For Non-Sinusoidal Waveforms
Of Complex Voltage Or Current Signals
BEEP-JACK AUDIBLE & VISIBLE WARNING Guards Against Improper Current Terminals
Plug In. Decreases Risks Of Damage
PC INTERFACE CAPABILITY Optional Purchase USB Cable
With Data Recording PC Software
For Win7/8/10
GHOST-VOLTAGE-BUSTER LoZ Drains Ghost/ Stray Voltages
Leaving Only Hard Signals
On Meter Readings
AUTOCHECK FEATURE Automatic Selection Of
LoZ DCV, LoZ ACV & OHMS
Hz OF LINE LEVEL VOLTAGE Measures Noisy High Voltage
ACV Frequencies In Dual Display
HIGH IMPEDANCE VOLTAGE 1000VAC/DC Measuring Capabilities;
High Input Impedance For
Load Sensitive Circuits
LOGIC LEVEL Hz Measures Digital Logic Level
Frequencies Up To 1MHz
LOGIC LEVEL DUTY% Measures Digital Logic Level
Duty Cycle % Readings
CREST (PEAK HOLD) Captures Instantaneous
+Peak & -Peak, Auto-Ranging
nS CONDUCTANCE nS=1/GΩ Virtually Extends
Resistance Measurement To
The Order Of GΩ. It Is Useful
For Leakage Measurements
FUNCTION SELECTION Toggle Conveniently Between
Primary & Secondary Functions
DISPLAY BACKLIGHT For Easy Viewing In The Dark
HIGH ACCURACY 0.08% Basic DCV Accuracy;
Fast Auto-Ranging
ANALOG BAR-GRAPH Fast Update Rate 60/Sec
STAND-ALONE DATA-LOGGING Up To 10,800 Data Items In Single
Display Mode, Or 5,400 Data
Items In Dual Display Mode
STAND-ALONE DATA-RECALL On-Screen Review Logged Readings
Without The Need Of A Computer
SELECTABLE SAMPLING INTERVAL 16 Selectable Sampling Intervals
From 0.05s To 600s

Specifications subject to
change without notice patents pending.
