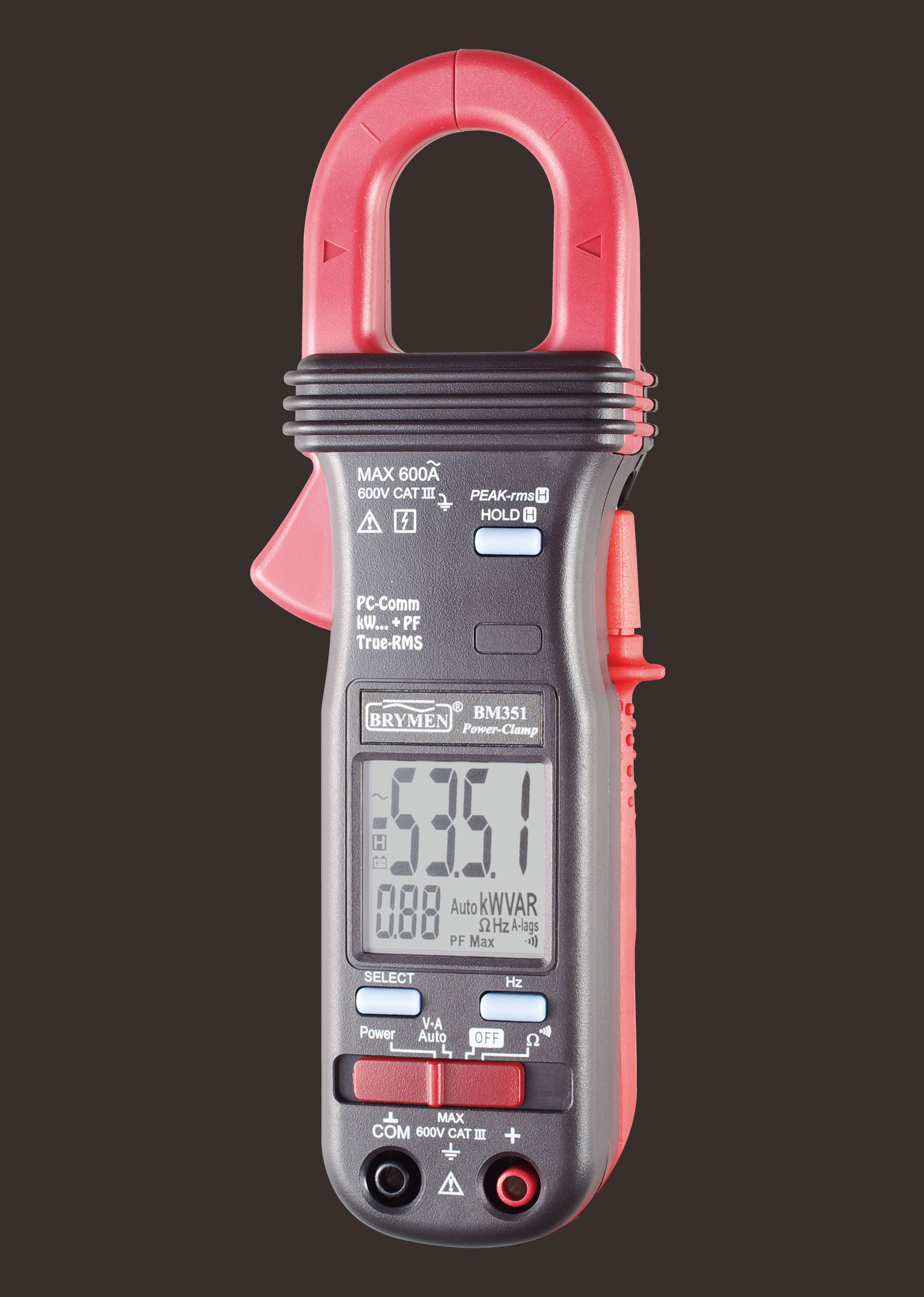

BM351s
Compact PowerClamp™ DMM

A Handy Yet Most Complete Slim-Jaws PowerClamp!

Full Power Functions Plus kWHr Recording & 3~Unbalanced-Load Power For Advanced Applications!
bg_02-11
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
65ms PEAK-RMS HOKD Captures In-Rush RMS Values
Of ACA Or ACV As Short As
65ms In Duration
DATA HOLD Freezes The Displaying
Reading For Later View
PROBE HOLDERS Built-In Probe Storage Holders
BATTERY COMPARTMENT With Access Door For
Easy Battery Replacement
A-lags-V INDICATION Unambiguous Indications Of Current
Lags Voltage In Inductive Circuits
HIGH CURRENT ACA Hz Measures Non-Invasive
ACA Frequency VIA Clamp Jaws
HIGH VOLTAGE ACV Hz Measures Noisy High Voltage
ACV Frequency VIA Test Leads
250μs FAST AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
RESISTANCE Up To 999.9 OHMS, 0.1 OHM
Resolution With 600V Protection
TRANSIENT PROTECTION Up To 6kV 1.2/50μs Lightning Surge;
More Confidence For Serious Users
EMC Meets EN61326-1:2006
(EN55011, EN61000-3-2/-3 &
EN61010-4-2/-3/-4/-5/-6/-8/-11 )
TOTAL POWER FACTOR PF = W / VA Is Used For Nowadays
Power-Systems With Harmonics
FULL POWER PARAMETERS Dual Display Measurements Of
"W + PF", "VA + PF", Or "VAR + PF" On
3~ Balanced-Load & 1~ Power
AutoVA FEATURE Sophisticated MCU Controlled
Auto-Selection Of ACA, ACV Or DCV
Shortens The Time To Measure
And Increases The Ease Of Use
0.5% DCV & ACV BASIC ACCURACY Up To 600 VOLTS, 0.1V Resolution
TRUE RMS MEASUREMENTS For Non-Sinusoidal Waveforms
Of AC Voltages & AC Currents
PC-COMM INTERFACE CABABILITIES Built-In Optical Isolated DATA
Output PORT. Optional Purchase
Interface Kit For PC Connection
LVD CAT III 600V SAFETY Meets EN61010-1 & EN61010-2-032
2nd Edition CAT III 600V
RUGGED & DURABLE High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Reliability
SMALL & ULTRA-SLIM CLAMP JAWS For Easy Access To Tight Places
With AC 600A Capability
LIGHT WEIGHT & STYLISH Also Comes With A Soft Pouch
For Easy Carrying & Protection

Specifications subject to change without notice.
Patented & patents pending.
