Clamp-on Multimeter Series
>
Clamp-on DMMs
>

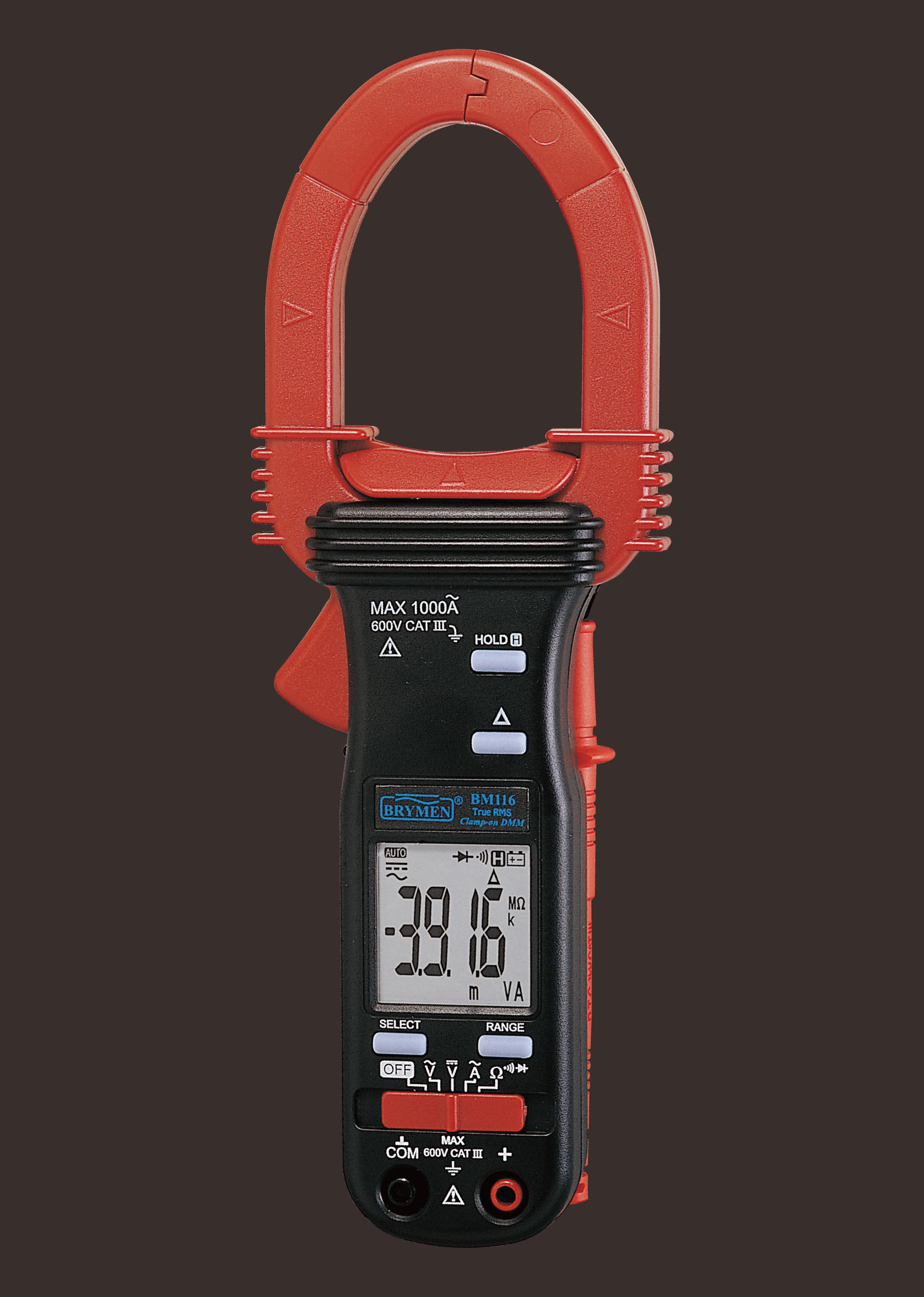

BM116
BM116
Performance Clamp-On DMM
High Performance, High Resolution & High Quality!
Plus Attractive High Technology Prices!
MORE DETAILS
INFO
RELATED PRODUCTS
DATA HOLD
Freezes The Displaying
Reading For Later Viewing
BATTERY COMPARTMENT
With Access Door For
Easy Battery Replacement
PROBE HOLDERS
Built-In Probe Storage Holders
RELATIVE ZERO MODE
For Convenient Readings
Comparison & Offset Adjustment
LARGE EASY-TO-READ LCD DIGITS
With 3/Sec Nominal Update Rate
MANUAL-RANGING MODE
Auto-Ranging With Manual-Ranging Override
DIODE TEST
For Testing Diodes And Rectifiers
AUDIBLE CONTINUITY
For Quick Open-Short Tests
On Switches, Fuses, And Wires
RESISTANCE
6 Ranges; Auto-Ranging
Up To 40Mega OHMS With 600V Protection
TRANSIENT PROTECTION
Up To 6.5kV 1.2/50μs Lightning Surge;
More Confidence For Serious Users
EMC
Meets EN61326(1997, 1998/A1),
EN61000-4-2(1995), & EN61000-4-3(1996)
UP TO AC 1000 AMPS MEASUREMENTS
2 Non-Invasive AC Current Auto-Ranges
VIA Clamp Jaws; Best Resolution 0.1A
5 FULL AC VOLTAGE RANGES
From 400mV Range
Up To 600 V Range
5 FULL DC VOLTAGE RANGES
From 400mV Range
Up To 600 V Range
FUNCTION SELECTION
Conveniently Toggle Between
Primary & Secondary Functions
HIGH SPEED AUTO-RANGING
Shortens The Time To Test
And Increases The Ease Of Use
TRUE RMS MEASUREMENTS
For Non-Sinusoidal Waveforms
Of AC Voltages & AC Currents
LVD CAT III 600V SAFETY
Meets EN61010-2-032 CAT III 600V
RUGGED & DURABLE
High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Reliability
LARGE U-SHAPE CLAMP JAWS
Measure ACA Of Large Single Conductor
Or Differential ACA Of Multiple Conductors
STYLISH & HANDY
Also Comes With A Soft Pouch
For Easy Carrying & Protection
Specifications subject to change without notice.
Patented & patents pending.
