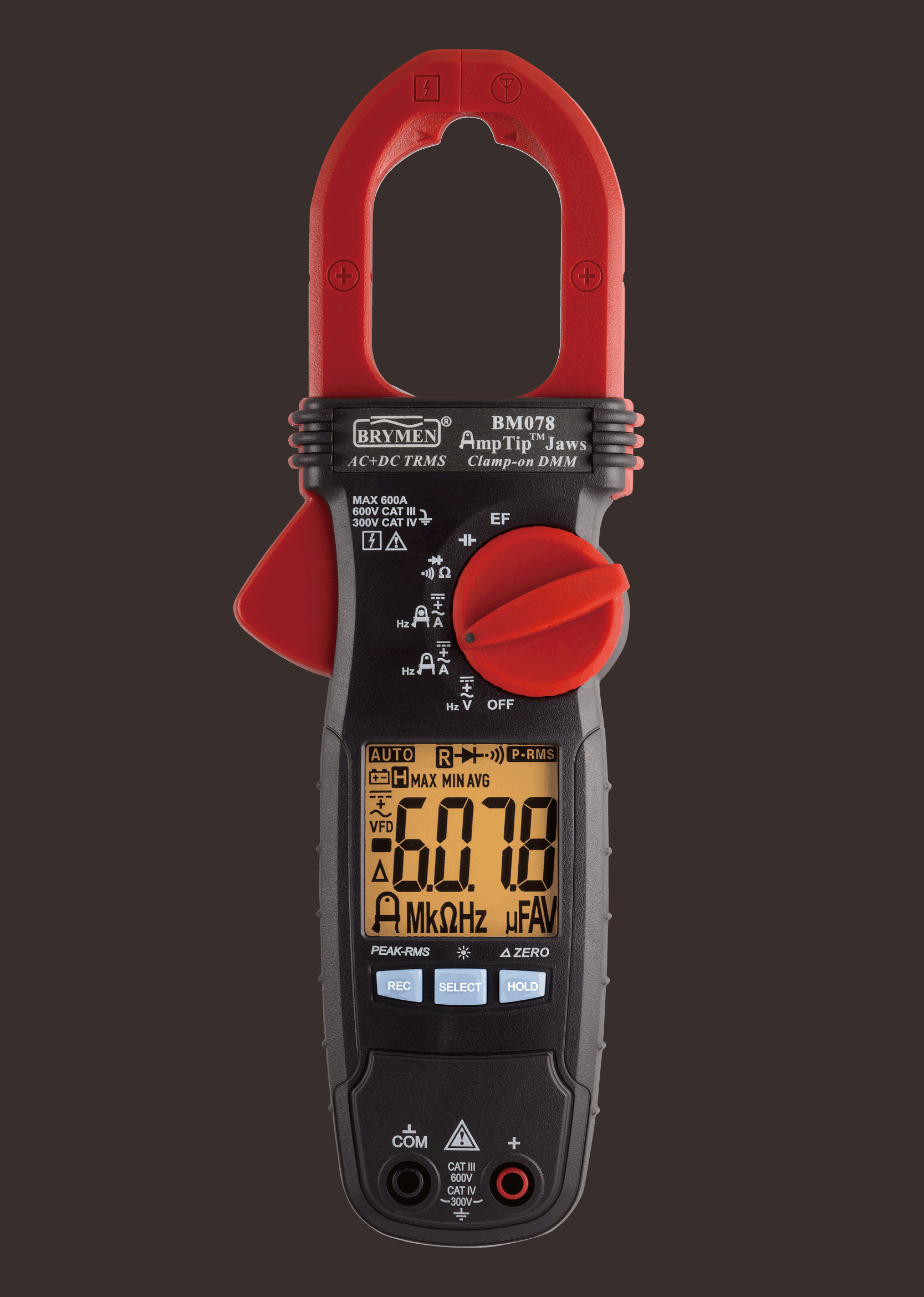

BM078
AmpTip Jaws
Clamp-on DMM

Innovative AmpTip Jaws For Slim-Conductors In CAT-III 600V Areas

Ergonomic All-In-One AC/DC 600A. AC+DC TRMS
bg_02-11

World-wide Patented:
D148256
2001176
D678,092S
402011006273.9
M438628
2755507
13486915
202012102140.4
M429871
2359464
202011052429.9
  • MORE DETAILS
  • INFO
  • RELATED PRODUCTS
CAPACITANCE 2 Auto-Ranges Up To 2500μF
To Measure Motor Capacitors
RESISTANCE 3 Auto-Ranges Up To 60kΩ
Best Resolution 0.1Ω At 600Ω Range
ERGONOMIC & STREAMLINE BODY Also Comes With A Soft Pouch
For Easy Carrying & Protection
1.0% DCV BASIC ACCURACY DCV Up To 600V;
ACV Up To 600V
RELATIVE ZERO & DC_ZERO For Convenient Readings Comparison
As Well As DC Jaws Hysteresis Offset
DATA HOLD Freezes The Displaying
Reading For Later View
RUGGED & DURABLE High-Impact Fire-Retarded
Enclosure With Battery
Compartment & Access Door
TRANSIENT PROTECTION Up To 6kV 1.2/50μs Lightning Surge;
More Confidence For Serious Users
EMC Meets EN61326-1:2006(EN55022,
EN61000-3-2/-3 & EN61000-4-2/-3/-4/-5/-6/-8/-11 )
BACKLIGHTED LCD DISPLAY For Easy Viewing In The Dark
RECORD MAX / MIN / AVG Records Max, Min, & Calculates AVG
Readings Over Time. Auto-Ranging
IN-RUSH PEAK-RMS Captures In-Rush Peak RMS Readings
At Durations As Short As 80ms
AUTO-POWER-OFF Extends Battery Life
FULLY AUTO-RANGING DMM Shortens The Time To Measure
And Increases The Ease Of Use
VFD V & Hz FEATURE Measures Fundamental
Voltage & Frequency Of Most
Variable Frequency Drives
AmpTip LOW-CURRENT & Hz Ergonomically Measures At Jaw Tip For
Small-Sized Conductors Up To 60 Amps
REGULAR CURRENT & Hz Measures At Jaw Center For
Regular Conductors Up To 600 Amps
FAST AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires
DIODE TEST For Testing Diodes & Rectifiers
LVD CAT III 600V & CAT IV 300V Certified EN61010-2-032, EN61010-2-032,
EN61010-1 & Relevant UL Standards On
CAT III 600V & CAT IV 300V
AC+DC TRUE RMS MEASUREMENTS For Non-Sinusoidal & Complex
Waveforms Of Voltages & Currents
HANDY 35mm AmpTip CLAMP JAWS For Large & Small Conductors With
AC Or DC+AC TRMS 600A Capability
EF-DETECTION Both Non-Contact (NCV) &
Single-Probe Voltage Detection
For Identifying Live Lines

Specifications subject to
change without notice patents pending.
